A Bland-Altman plot is a graphical method to compare two measurements techniques. In the context of electroencephalography (EEG), you might use a Bland-Altman plot to compare the readings obtained from two different EEG devices or methods. This type of plot helps identify any systematic differences between the measurements and to assess the agreement or consistency between them.
In a Bland-Altman plot, the x-axis typically represents the average of the two measurements, and the y-axis shows the difference between the measurements. This allows you to see whether the differences between the two measurements are related to the magnitude of the measurement. The plot usually includes lines to represent the mean difference (which indicates systematic bias) and the limits of agreement (which are calculated as the mean difference plus and minus 1.96 times the standard deviation of the differences, indicating random variation).
If you have data from an EEG study and want to create a Bland-Altman plot, I can help with that. You would need to provide the paired measurements from the two EEG methods or devices. The plot can help you visualize the agreement between the two measurements and identify any potential sources of bias or variability.
Yes, you can also use a Bland-Altman plot to compare measurements from two different EEG channels within the same recording. This can be useful for assessing the consistency of measurements obtained from different channels and identifying any potential differences or sources of variability.
For example, if you have EEG data from two different channels and want to compare the measurements obtained from each channel, a Bland-Altman plot can help you visualize the agreement between the two sets of measurements. This can be particularly useful for identifying any systematic differences or sources of variability between the channels, which can be important for interpreting the EEG data and drawing accurate conclusions from the study.
Using a Bland-Altman plot to compare two different EEG channels within the same recording is a valid approach, especially when you want to understand the level of agreement or consistency between these channels. This can be particularly useful if the channels are supposed to measure similar or related brain activities, or if you're assessing the reliability of the EEG setup.
For the Bland-Altman analysis, you would need to have corresponding data points from the two EEG channels that you wish to compare. Typically, this would involve selecting segments of the EEG where both channels are expected to record similar activities (e.g., resting state, response to the same stimulus) and then calculating a relevant metric (like mean amplitude, peak frequency, etc.) for each segment in both channels.
When interpreting a Bland-Altman plot, you should look for any patterns or trends in the differences between the measurements. If the plot shows a consistent pattern, it may indicate a systematic bias between the two measurement methods or channels. On the other hand, if the plot shows random variability with no clear pattern, it suggests good agreement between the measurements.
The mean difference line and the limits of agreement can help you assess the overall agreement between the measurements. If the mean difference is close to zero and the limits of agreement are narrow, it indicates good agreement between the measurements. However, if the mean difference is far from zero or the limits of agreement are wide, it suggests poor agreement between the measurements.
Overall, a Bland-Altman plot provides a visual representation of the agreement between two measurement methods or channels, allowing you to identify any potential sources of bias or variability and assess the overall consistency of the measurements.

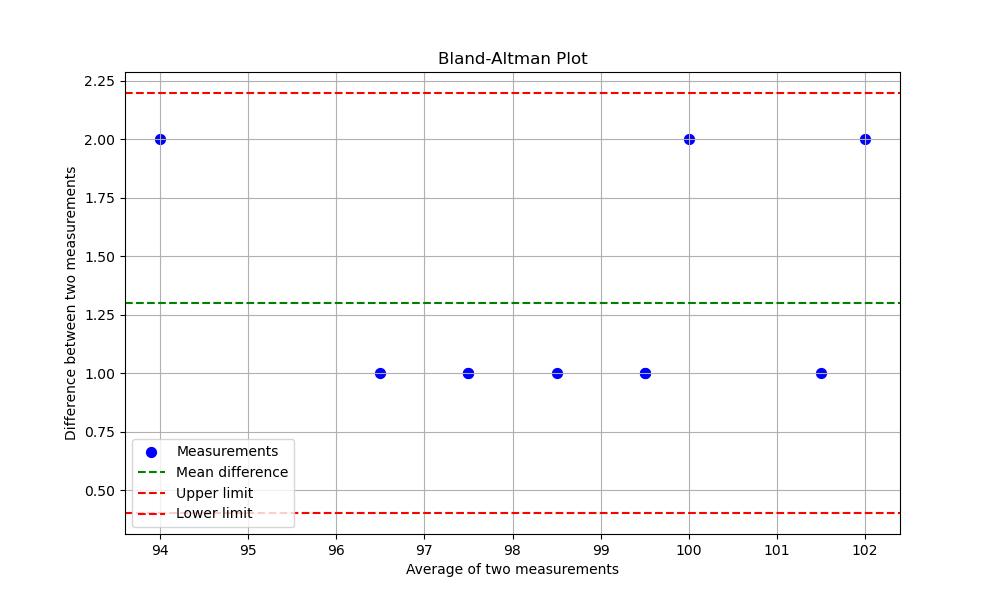

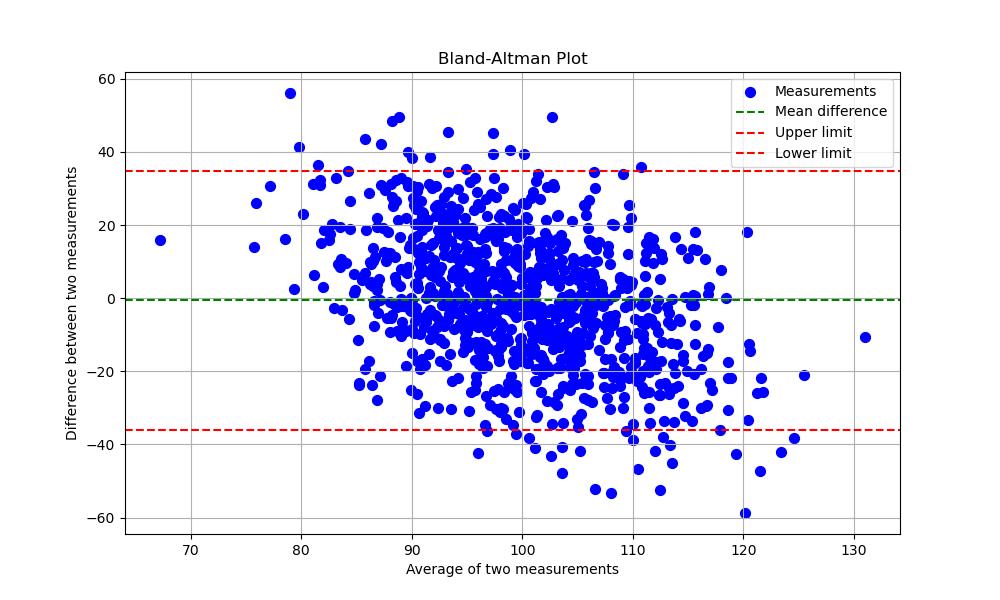

Here's an example of a Bland-Altman plot comparing measurements from two different EEG devices. The plot shows the average of the measurements on the x-axis and the difference between the measurements on the y-axis. The mean difference line and the limits of agreement are also included to help interpret the agreement between the measurements.
Here's an example of Python code to create a Bland-Altman plot using the matplotlib library. This code assumes you have two sets of measurements stored in arrays or lists, and it calculates the mean difference and limits of agreement to plot the data.
import numpy as np
import matplotlib.pyplot as plt
# Example data: two sets of measurements
# measurement_1 = np.array([101, 98, 103, 95, 100, 102, 97, 99, 100, 98])
# measurement_2 = np.array([99, 97, 101, 93, 99, 101, 96, 98, 99, 97])
# Simulate more realistic data:
# For demonstration purposes, let's simulate more realistic data using numpy's random number generator.
# We'll simulate two sets of 1000 measurements, each normally distributed around 100,
# but with different standard deviations to introduce some variability.
# np.random.seed(0) # for reproducibility
measurement_1 = np.random.normal(loc=100, scale=10, size=1000)
measurement_2 = np.random.normal(loc=100, scale=15, size=1000)
# Calculating averages and differences
averages = (measurement_1 + measurement_2) / 2
differences = measurement_1 - measurement_2
# Calculating mean difference and limits of agreement
mean_difference = np.mean(differences)
std_difference = np.std(differences)
upper_limit = mean_difference + 1.96 * std_difference
lower_limit = mean_difference - 1.96 * std_difference
# Plotting the Bland-Altman plot
plt.figure(figsize=(10, 6))
plt.scatter(
averages, differences, color="blue", s=50, label="Measurements"
) # Increase size of points
plt.axhline(
mean_difference, color="green", linestyle="--", label="Mean difference"
) # Add label
plt.axhline(upper_limit, color="red", linestyle="--", label="Upper limit") # Add label
plt.axhline(lower_limit, color="red", linestyle="--", label="Lower limit") # Add label
plt.xlabel("Average of two measurements")
plt.ylabel("Difference between two measurements")
plt.title("Bland-Altman Plot")
plt.grid(True)
plt.legend(loc="best") # Add legend
plt.show()
