1. Neural Overview & Electrophysiological Basis
The P300 wave is a highly reproducible Event-Related Potential (ERP) first identified in electroencephalographic research as an indicator of cognitive processing speed, categorization latency, and decision-making time. When a participant is subjected to an oddball paradigm experiment—where a fast sequence of standard, frequent, non-target stimuli is occasionally punctuated by a rare, task-relevant target stimulus—the central nervous system triggers a positive deflection in the ExG signal, typically peaking at parietal, occipital, and central electrodes approximately 300 to 500 milliseconds post-stimulus.
Physiologically, the P300 represents cortical resource allocation, attention-driven signal routing, and memory update processes. It comprises two subcomponents: the P3a (representing fast frontal orientation/attention shift) and the dominant, central-parietal P3b (representing cognitive evaluation, decision processes, and response latency). Standard EEG setups like the Mentalab Explore Plus capture these signals differentially relative to a reference (e.g., TP10 mastoid) using low-impedance Ag/AgCl wet electrode caps. Analysis of this paradigm helps clinicians evaluate neurological conditions, cognitive decline, sensory processing efficiency, and brain-computer interface (BCI) reliability.
By analyzing the temporal latency of this positive deflection, researchers can calculate the subjective speed of cognitive evaluation. A delayed peak amplitude often correlates with neurological strain, fatigue, or cognitive impairment. Conversely, higher amplitude responses represent robust attentional recruitment and effective target classification within the frontoparietal networks of the cerebrum.

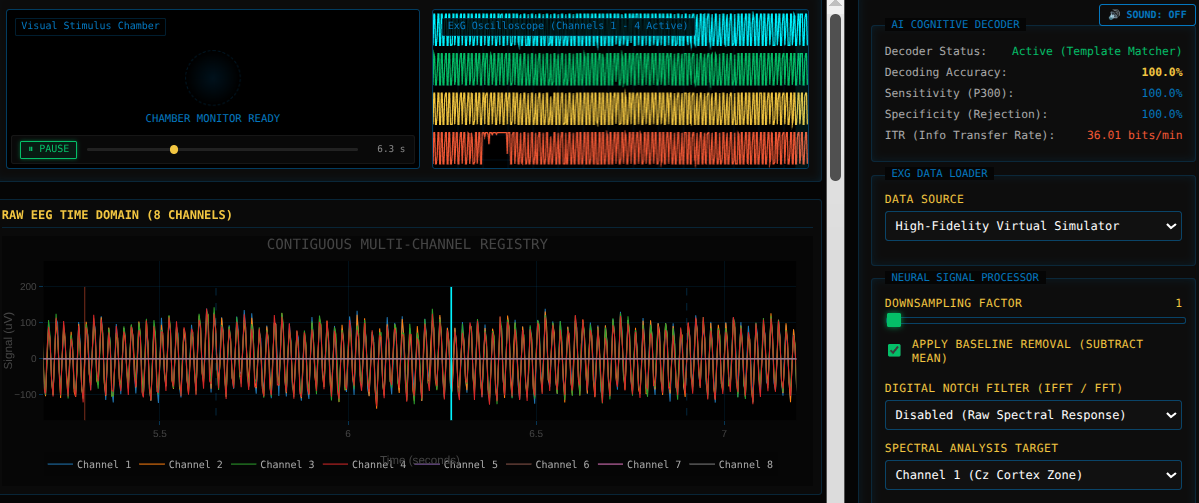

2. Interactive Dashboard Navigation & Laboratory Manual
Interactive Stimulus Chamber: Displays the visual stimulus paradigm directly to the user. Standard trials produce blue squares, while rare target "oddball" trials emit a glowing red oval. Users can toggle sound output to hear pitch-shifted acoustic cues designed to reinforce the cognitive stimulus-response pattern. You can use the Playback bar to sweep, pause, or slide manually through the pre-loaded or simulated session window.
Signal Processing Controls: Adjust parameters like Downsampling Factor to downscale massive raw datasets before filtering, which prevents CPU lockups during spectral calculations. Use Apply Baseline Removal to calculate the sample mean of the ExG signal across the recording and subtract it, centering ExG drift to 0 uV. Engage the Notch Filter to target 50 Hz (European grid standards) or 60 Hz (North American grid standards) within the FFT frequency domain, clearing high-amplitude electromagnetic line interference before reconstructing the clean time-domain signal through the Inverse Fourier Transform.
Offline Review Panels: The primary EEG trace visualizes raw ExG data across active channels. Underneath, the Averaged Event-Related Potential (ERP) plot dynamically isolates signal windows relative to target and non-target markers, illustrating the precise emergent P300 peak under active experimental conditions. The spectral FFT plot contrasts raw and notch-filtered magnitude bins, and the ORN panel displays motion telemetry to analyze kinetic movement artifacts.
3. Technical Signal Pipeline & Mathematics of the Fourier Transform
Signal data parsing leverages PapaParse to execute asynchronous CSV reads. Timestamps ($T_{raw}$) are normalized to zero-index baselines ($T_{adjusted} = T_{raw} - T_{offset}$) using metadata parameters. Downsampling down-scales ExG arrays using a modulus filter ($i \pmod k = 0$) and adjusts sampling rates ($f_{new} = f_{old} / k$).
The standalone Cooley-Tukey Fast Fourier Transform (FFT) algorithm converts signal data from the time domain to the complex frequency domain. It recursively divides an ExG sequence of length $N$ into even-indexed and odd-indexed sub-sequences:
X[k] = E[k] + WNk · O[k], for k = 0, ..., N/2 - 1
where $W_N^k = e^{-i 2\pi k / N}$ represent the complex twiddle factors. The algorithm strictly requires $N$ to be a power of two; if not, input arrays are zero-padded to the next higher power ($2^{\lceil \log_2 N \rceil}$). The digital Notch Filter operates directly in the frequency domain by identifying the bin indexes corresponding to the target center frequency $f_c$ within the resolution range ($\Delta f = f_s / N$). Spectral components inside the bandwidth window ($f_c \pm 1\text{ Hz}$) and their symmetric high-frequency counterparts are zeroed out ($X[k] = 0 + 0i$). Re-entering the time domain via the Inverse FFT (IFFT) yields a clean ExG wave reconstructed without line frequency artifacts.
This hybrid spectral pipeline is implemented in pure Javascript without external mathematical runtimes, preserving signal fidelity while demonstrating high execution throughput within the web-browser window. The reconstructed signal can be compared in real-time with raw, unfiltered traces using the multi-axis canvas overlay.
4. Laboratory Roadmap & Future Clinical Engineering Directions
Future development will expand integration with consumer EEG hardware, implementing live Web Bluetooth (BLE) interfaces to enable real-time, zero-latency streaming directly from raw ExG nodes. Advanced digital signal processing pipelines will add automated Independent Component Analysis (ICA) and artifact rejection algorithms (such as electrooculography EOG blink detection) to automatically isolate non-neural motor artifacts from the prefrontal cortex.
Additional feature sets will incorporate real-time cognitive classification models using support-vector machines (SVM) or deep convolutional neural networks (CNN) to predict stimulus targets. This will provide users with a complete cognitive neural classification playground directly inside the single-page browser view, bridging the gap between theoretical electrophysiology and practical brain-computer interfacing.
