AeroFlow Biophysics: Fluid Mechanics of Airway Obstruction & Acoustic Sensor Dilemmas
Managing asthma and chronic obstructive airway conditions requires continuous, reliable tracking of airway caliber. For over five decades, the mechanical Peak Flow Meter (PFM) has served as the frontline self-monitoring tool, tracking the Peak Expiratory Flow Rate (PEFR) in liters per minute. However, the rise of digital health has spurred the development of acoustic smartphone spirometry, which utilizes embedded mobile microphones to capture exhalation acoustics and predict airflow without mechanical hardware.

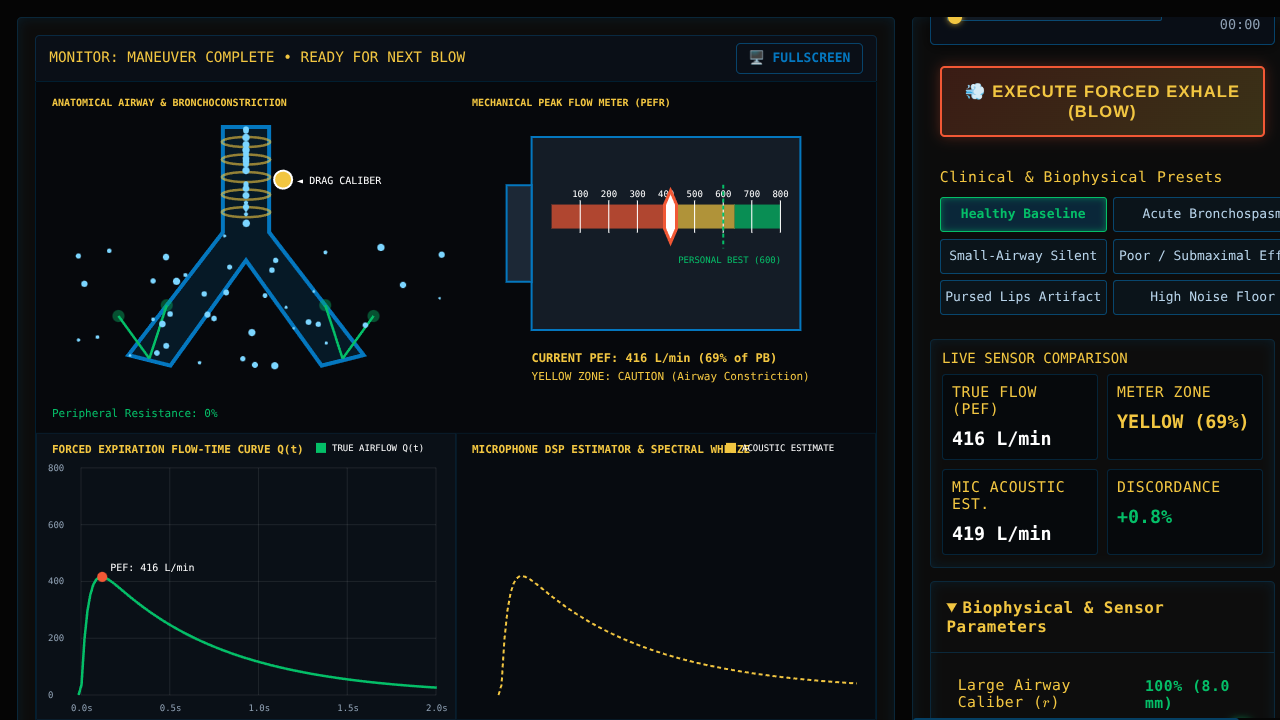

1. Fluid Dynamics & Airway Resistance: Poiseuille’s Law
Airflow in the respiratory tree follows the fundamental principles of fluid dynamics governed by the Navier-Stokes and Hagen-Poiseuille formulations. Under laminar regime assumptions, volumetric flow rate $Q$ driven by a pressure gradient $\Delta P$ across a cylindrical airway of internal radius $r$ and length $L$ is expressed by:
$$\Delta P = \frac{8 \eta L Q}{\pi r^4} \implies R_{airway} = \frac{8 \eta L}{\pi r^4}$$
where $\eta$ represents the dynamic viscosity of air ($\approx 1.81 \times 10^{-5}\text{ Pa}\cdot\text{s}$ at body temperature). Because airway resistance $R_{airway}$ scales inversely with the fourth power of radius ($r^4$), a mere 20% reduction in luminal diameter causes resistance to surge by roughly:
$$\left(\frac{1}{0.80}\right)^4 \approx 2.44 \implies +144\%\text{ increase in resistance}$$
During forced expiration, high velocities induce turbulent flow, particularly in the central trachea and mainstem bronchi. Under turbulent conditions, pressure dissipation transitions toward Rohrer's empirical quadratic model:
$$\Delta P = K_1 Q + K_2 Q^2$$
Here, the linear coefficient $K_1$ represents viscous friction, while $K_2$ accounts for convective inertial acceleration and turbulent vortex shedding.
2. Critical Limitations of the Mechanical Peak Flow Meter
While simple and battery-free, mechanical peak flow meters suffer from four deep biophysical and behavioral vulnerabilities:
- The Large Airway "Blind Spot": Peak expiratory flow occurs within the initial 100 to 150 milliseconds of forced exhalation. This initial burst reflects the emptying of the large, central cartilaginous airways (trachea and main bronchi). However, the primary site of early asthmatic inflammation and remodeling resides in the non-cartilaginous peripheral small airways ($<2\text{ mm}$ internal diameter). A patient can harbor extensive small-airway obstruction, air trapping, and ventilation heterogeneity while maintaining a normal PEF score.
- Extreme Effort Dependence: The driving force behind PEF is the maximum pleural pressure $P_{pl}$ generated by abdominal and thoracic expiratory muscles. A submaximal effort, poor initial blast acceleration, or tongue obstruction can decrease PEF by 30% to 50%, producing a false-positive indication of bronchospasm when the airways are anatomically patent.
- Symptom Discordance & The "Poor Perceiver": Chronically inflamed airways often induce blunted autonomic perception. Up to 15% of severe asthmatics are "poor perceivers" who experience critical airway collapse without perceived dyspnea until life-threatening hypoxia supervenes.
- The Asthma Action Plan Traffic Light System: Clinical management classifies PEF into three zones based on the patient's personal best:
- Green Zone (80% to 100%): Adequate control; maintenance pharmacotherapy maintained.
- Yellow Zone (50% to 80%): Airway constriction underway; short-acting $\beta_2$-agonist (SABA) rescue bronchodilators indicated.
- Red Zone (<50%): Emergency threshold; immediate rescue medication and emergency medical evaluation required.
3. Acoustic Spirometry: Can a Smartphone Microphone Measure Airflow?
Acoustic spirometry attempts to replace mechanical orifices and turbine flow sensors with ambient smartphone microphones. When gas exits the oral cavity during a forced maneuver, acoustic pressure waves are generated through turbulent jet mixing and shear stress against the lips and teeth.
The acoustic sound power $W_{sound}$ generated by a turbulent air jet scales dramatically with exit velocity $v_{exit}$, following Lighthill's eighth-power law for aerodynamic quadrupole noise:
$$W_{sound} \propto \frac{\rho_0}{c_0^5} D^2 v_{exit}^8$$
However, calculating volumetric flow rate $Q = v_{exit} \cdot A_{lip}$ from microphone sound pressure level $p_{mic}$ introduces severe systemic failure modes:
- Acoustic Decoupling (Sound Pressure $\neq$ Mass Flow): Microphones measure fluctuations in acoustic pressure ($\text{N/m}^2$), not fluid mass displacement. If a patient purses their lips, the exit area $A_{lip}$ decreases. To maintain flow, exit velocity spikes, generating intense high-frequency turbulence noise. The acoustic algorithm interprets this loud acoustic energy as a massive expiratory flow, despite actual flow $Q$ being substantially restricted.
- Vocal Tract and Resonant Cavity Confounders: The human pharynx, oral cavity, and dentition act as acoustic resonators. Anatomical variations, tongue posture, and varying phone distances from the lips (the inverse-square acoustic law $p \propto 1/d$) dramatically distort signal amplitude.
- Ambient Noise Contamination: Mechanical meters are immune to room noise. Acoustic sensors, however, require aggressive filtering. Background conversation, street noise, or HVAC hum can corrupt the subtle turbulent spectral envelope.
- Acoustic Wheeze Detection (Where Microphones Excel): While microphones struggle to calculate exact liters per minute, they are uniquely powerful for detecting adventitious musical wheezes. Wheezes originate from the flutter of narrowed airway walls oscillating at their natural resonant frequencies ($200\text{ Hz} - 1000\text{ Hz}$) when gas velocity reaches the flutter threshold. Continuous nocturnal wheeze monitoring using passive mobile audio provides an objective marker of asthma exacerbation without requiring active patient effort.
4. Signal Processing & Diagnostic Comparison
The table below contrasts mechanical measurement against acoustic estimation across critical clinical parameters:
| Biophysical Parameter |
Mechanical Peak Flow Meter |
Smartphone Acoustic Algorithm |
| Direct Measurand |
Dynamic pressure on sliding piston |
Acoustic pressure waves ($p_{rms}$) |
| Small-Airway Sensitivity |
Near Zero (Large-airway early burst) |
High via end-expiratory wheeze spectral analysis |
| Mouth Geometry Sensitivity |
Low (Rigid cylindrical mouthpiece) |
Severe (Pursed lips alter jet turbulence) |
| Environmental Noise Vulnerability |
Completely immune |
High (Requires adaptive spectral denoising) |
| Patient Compliance Burden |
High (Manual physical device, logging fatigue) |
Zero for nocturnal cough/wheeze passive tracking |
