Biomedical & Health-Economic Evaluation: Assistive Modern Technologies vs. Invasive Neural Implants
For decades, biomedical engineering research has lionized direct neural interfaces: epiretinal bionic eyes (e.g., Argus II, Alpha IMS), multi-channel cochlear implants, and intracortical microelectrode arrays (e.g., Utah arrays, flexible thin-film neural threads). However, rigorous health-economic evaluation, epidemiological survival tracking, and Shannon information theory reveal that modern non-invasive assistive technologies (smartphones, edge multi-modal vision-language models, spatial haptics, bone-conduction acoustics, and beamforming audio) systematically provide superior cost-benefit ratios, zero surgical morbidity, and rapid iterative upgrade cycles.

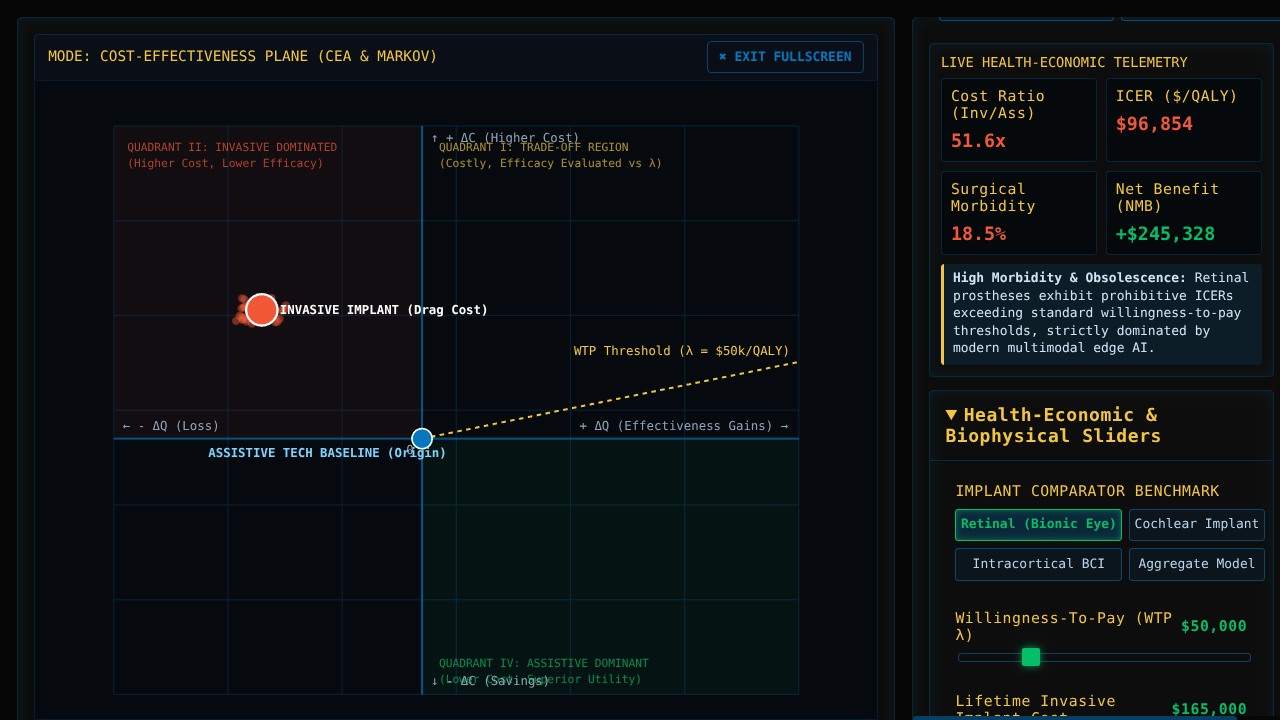

1. The Cost-Utility Frontier: ICER and Net Monetary Benefit
In health economics, the therapeutic cost-effectiveness of an intervention is quantified via the Incremental Cost-Effectiveness Ratio ($\text{ICER}$):
$$\text{ICER} = \frac{C_{\text{invasive}} - C_{\text{assistive}}}{Q_{\text{invasive}} - Q_{\text{assistive}}} = \frac{\Delta C}{\Delta Q}$$
An intervention is considered cost-effective if its $\text{ICER}$ falls strictly below a society's willingness-to-pay threshold ($\lambda$), typically standardized at $\$50,000$ to $\$100,000$ per Quality-Adjusted Life Year ($\text{QALY}$). Equivalently, the Net Monetary Benefit ($\text{NMB}$) must be positive:
$$\text{NMB} = \lambda \cdot \Delta Q - \Delta C > 0$$
When evaluated over a 10-year lifetime horizon, the cumulative cost of an invasive visual prosthesis or intracortical array—including vitrectomy/craniotomy, inpatient neurosurgical care, routine post-surgical impedance mapping, explantation risks, and revision procedures—routinely surpasses $\$150,000$ to $\$250,000$ USD. In contrast, modern assistive ecosystems leverage commercial-off-the-shelf (COTS) edge devices with modular replacement cycles totaling under $\$3,500$ to $\$6,000$ over the same decade. Because the practical functional QALY gains of invasive retinal implants are severely constrained by low electrode density and phosphene smear, their $\text{ICER}$ routinely skyrockets past $\$180,000/\text{QALY}$, placing them firmly in the *dominated* or cost-ineffective quadrant.
2. Crucial Clinical Nuance: The Cochlear Implant Distinction
Crucially, health-economic models must avoid conflating abandoned visual prosthetics with the proven clinical success of Cochlear Implants (CIs). Over 1,000,000 individuals worldwide have received cochlear implants. For severe-to-profound sensorineural deafness ($>90\text{ dB}$ loss where biological hair cells are completely absent), acoustic hearing aids cannot stimulate the auditory nerve, making direct electrical stimulation medically indispensable. Formal Health Technology Assessments (HTAs) consistently demonstrate that pediatric and adult cochlear implantation achieves an exceptionally favorable ICER of $\$15,000$ to $\$35,000/\text{QALY}$—well below the $\$50,000$ threshold. In auditory medicine, modern assistive technologies (such as algorithmic spatial beamforming, automated transcription, and low-latency Bluetooth Auracast) function as vital *pre-surgical companions and post-operative enhancers*, rather than replacements for biological transducer bypass.
3. Surgical Morbidity, Glial Encapsulation, and Anatomical Trauma
Every invasive implant incurs surgical penalties absent from non-invasive wearable solutions. In intracortical brain-computer interfaces (BCIs), craniotomy and dura incising trigger the Foreign Body Response (FBR). Activated microglia and reactive astrocytes form dense glial scar tissue surrounding microelectrode tips, elevating complex electrical impedance $Z(\omega)$ and attenuating recorded extracellular action potentials:
$$Z_{\text{electrode}}(t) = Z_0 + \Delta Z_{\text{glia}} \left(1 - e^{-t / \tau_{\text{scar}}}\right)$$
Concurrently, the biological signal-to-noise ratio degrades exponentially over time ($\text{SNR}(t) = \text{SNR}_0 \cdot e^{-t/\tau_{\text{degrade}}}$), precipitating channel dropouts and requiring recalibration or surgical revision. In retinal prostheses, surgical tacks or subretinal arrays introduce risks of endophthalmitis, retinal detachment, hypotony, and conjunctival erosion. Assistive technologies operate with zero surgical morbidity ($p_{\text{surg}} = 0$), zero anesthesia exposure, and zero risk of biological tissue necrosis.
4. The "Hardware Abandonment" & Obsolescence Crisis
Perhaps the most devastating vulnerability of invasive neuroprostheses is corporate obsolescence. The historic crisis of Second Sight Medical Products (Argus II) and Retina Implant AG illustrated that when a medical device company shifts clinical focus or faces financial restructuring, patients with permanently implanted arrays are left with orphaned, unsupported silicon embedded inside their eyes. If a subcutaneous hermetic coil fails or an external processor breaks, replacement parts cease to exist, turning the patient's body into a repository for obsolete medical waste.
Non-invasive assistive technologies cleanly decouple the physical hardware chassis from the cognitive algorithmic layer. Software algorithms, computer vision pipelines (e.g., YOLO visual detection, multi-modal LLM scene captioning, OCR), and edge spatial audio filters receive continuous over-the-air (OTA) updates on a bi-weekly cycle:
$$\Delta t_{\text{software\_update}} \approx 14 \text{ days} \quad \text{vs.} \quad \Delta t_{\text{implant\_hardware\_cycle}} \approx 8 - 12 \text{ years (or never)}$$
A blind individual utilizing smartphone-based computer vision receives instant neural network improvements the moment new multi-modal vision weights are deployed worldwide—without undergoing general anesthesia or scalpel incisions.
5. Information Theory & Shannon Channel Capacity Comparison
From a biophysical information theory perspective, sensory substitution technologies surpass current invasive visual implants in effective functional channel capacity ($C_s$):
$$C_s = B \cdot \log_2\left(1 + \frac{S}{N}\right)$$
An Argus II epiretinal array possesses $60$ electrodes, yielding an effective grid of roughly $6 \times 10$ phosphenes with extensive current cross-talk, visual persistence ghosting, and severe phosphene distortion. The functional transmission rate rarely exceeds a few tens of bits per second—insufficient to read standard typography, distinguish human facial expressions, or safely negotiate rapid pedestrian traffic.
Conversely, a 4K camera sensor paired with an on-device multi-modal neural network compresses millions of sensory bits into high-entropy, semantically synthesized spatial audio tokens ("Pedestrian crossing from right, 3.2 meters, red light active") delivered via binaural bone-conduction headsets. The functional utility transferred to the user's auditory cortex per unit time is orders of magnitude greater than direct electrical retinal micro-stimulation.
