1. Quantitative Biophysics of the Hodgkin-Huxley Giant Axon
In their seminal 1952 series of five papers published in the Journal of Physiology, Alan L. Hodgkin and Andrew F. Huxley unraveled the electrochemical mechanism underlying the initiation and propagation of nerve impulses in the giant axon of the Atlantic squid (Loligo pealeii). Their quantitative mathematical description represents one of the greatest triumphs in computational biology and biophysics, earning them the 1963 Nobel Prize in Physiology or Medicine alongside John Eccles.
The cell membrane functions electrically as a leaky capacitor in parallel with variable non-linear ionic conductances and reversal electromotive batteries established by active translocating enzymes such as the $Na^+/K^+$-ATPase pump. The total transmembrane current density $I_m$ across an isopotential membrane patch is governed by the fundamental capacitor displacement and ionic flux conservation equation:
$$C_m \frac{dV_m}{dt} = I_{stim} - \bar{g}_{Na} m^3 h (V_m - E_{Na}) - \bar{g}_K n^4 (V_m - E_K) - g_L (V_m - E_L)$$
where $C_m \approx 1.0\ \mu\text{F/cm}^2$ denotes specific membrane capacitance, $V_m$ is transmembrane potential in millivolts, and $I_{stim}$ represents externally injected microelectrode stimulation current density. The individual equilibrium Nernst reversal potentials are standardly calibrated to $E_{Na} = +50.0\ \text{mV}$, $E_K = -77.0\ \text{mV}$, and leak reversal $E_L = -54.4\ \text{mV}$, with baseline resting potential $V_{rest} \approx -65.0\ \text{mV}$.
2. Gating Kinetics: Activation and Inactivation Probabilities
Hodgkin and Huxley recognized that macroscopic ionic permeabilities are regulated by microscopic charged "particles" or subunit gates translocating across the membrane electric field. The dimensionless gating variables $m$, $h$, and $n$ take values strictly constrained in the interval $[0, 1]$ and represent statistical opening and closing probabilities:
- $m$ (Sodium Activation Gate): Three non-inactivating activation subunits ($m^3$) determine rapid sodium channel opening. A depolarization above threshold ($\approx -55\ \text{mV}$) drives $m \to 1$ within fractions of a millisecond.
- $h$ (Sodium Inactivation Gate): A single slow inactivation ball-and-chain subunit ($h$). Sustained depolarization drives $h \to 0$, shutting off $Na^+$ flux and instigating the absolute refractory period.
- $K$ Conductance ($n^4$ Activation): Four independent symmetrical gating subunits ($n^4$) regulate the delayed rectifier potassium channel. The kinetics of $n$ operate with an appreciable activation delay relative to $m$, enabling depolarization before repolarizing potassium outflow dominates.
Each gating variable evolves according to a first-order state transition rate equation:
$$\frac{dx}{dt} = \phi(T) \cdot \left[ \alpha_x(V_m)(1 - x) - \beta_x(V_m)x \right] = \frac{x_\infty(V_m) - x}{\tau_x(V_m)}$$
where $x \in \{m, h, n\}$. The empirical voltage-dependent transition rate functions $\alpha(V)$ and $\beta(V)$, formulated relative to baseline resting potential $V_{rest} = -65\ \text{mV}$ with shifted coordinate $v = V_m - (-65)$, are expressed as:
$$\alpha_m(v) = \frac{0.1(25 - v)}{\exp\left(\frac{25 - v}{10}\right) - 1}, \quad \beta_m(v) = 4 \exp\left(-\frac{v}{18}\right)$$
$$\alpha_h(v) = 0.07 \exp\left(-\frac{v}{20}\right), \quad \beta_h(v) = \frac{1}{\exp\left(\frac{30 - v}{10}\right) + 1}$$
$$\alpha_n(v) = \frac{0.01(10 - v)}{\exp\left(\frac{10 - v}{10}\right) - 1}, \quad \beta_n(v) = 0.125 \exp\left(-\frac{v}{80}\right)$$
3. Temperature Scaling ($Q_{10}$) & Numerical Integration
Ion channel conformation transitions are thermodynamic events. The rate constants accelerate dramatically with increasing temperature according to a power-law Arrhenius factor $\phi(T)$ with $Q_{10} = 3.0$:
$$\phi(T) = Q_{10}^{\frac{T - 6.3}{10}} = 3.0^{\frac{T - 6.3}{10}}$$
In this laboratory, integration occurs in real time via an adaptive sub-millisecond Runge-Kutta and Forward Euler numerical engine operating at $\Delta t = 0.01\ \text{ms}$. Singularity limits in rate quotients where the denominator approaches zero (e.g., $v \to 25$ in $\alpha_m$) are solved via rigorous numerical L'Hôpital expansion limits.
4. Pharmacology: Neurotoxin Channel Blockades & Limit Cycles
Specific pharmacological neurotoxins allow experimental isolation of individual conductances:
- Tetrodotoxin (TTX): Extracted from pufferfish of the family Tetraodontidae, TTX binds to Site 1 of the outer vestibule of voltage-gated $Na^+$ channels, effectively setting $\bar{g}_{Na} \to 0$. As simulated in this tool, threshold depolarization fails to generate action potentials.
- Tetraethylammonium (TEA): A quaternary ammonium ion that selectively occludes the intracellular pore of delayed rectifier $K^+$ channels ($\bar{g}_K \to 0$). Membrane repolarization becomes sluggish and relies purely on leak channels, resulting in markedly broadened action potential plateaus.

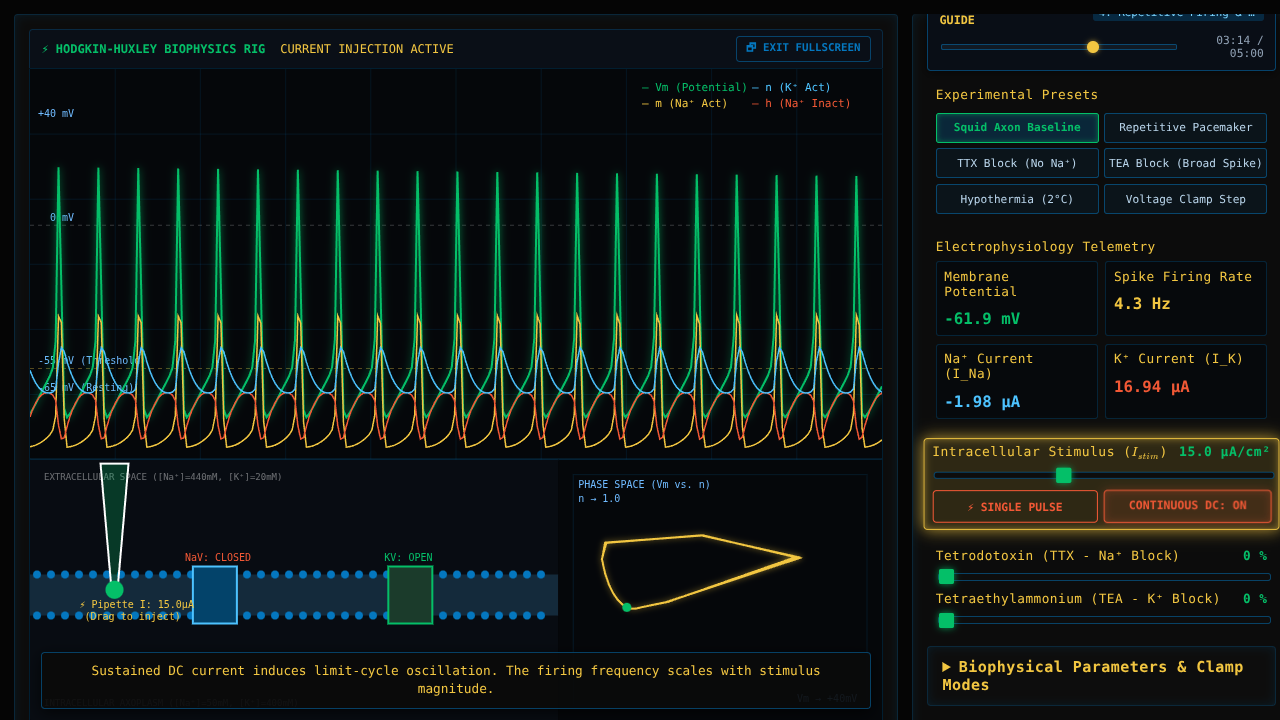

Under continuous suprathreshold stimulation $I_{stim} > 6.3\ \mu\text{A/cm}^2$, the non-linear dynamical system undergoes an Andronov-Hopf bifurcation, transitioning from a stable fixed point into an invariant stable periodic limit cycle characterized by repetitive firing.
5. How to Use the Axon Laboratory
- Direct Pipette Dragging: Click and drag the glass microelectrode on the lower membrane panel up or down to dynamically inject inward or outward stimulation current ($I_{stim}$).
- Single Pulse Injection: Click ⚡ Single Pulse to administer a transient current burst ($10\ \mu\text{A/cm}^2$ for $2\ \text{ms}$) and observe spike overshoot, repolarization, and relative refractory undershoot.
- Voltage Clamp Diagnostics: Toggle Voltage Clamp under Advanced Diagnostics to step the membrane potential to $+10\ \text{mV}$ and view the biphasic ionic current response (early inward $Na^+$ current followed by delayed outward $K^+$ current).
- Sonification: Enable 🔊 Sound On to listen to the neural discharge frequency. Action potentials produce acoustic spikes and frequency modulation tied to instantaneous membrane depolarization.
