Behavioral Mazes, Spatial Cognition & Ethological Neurobiology
Behavioral mazes represent foundational experimental paradigms in behavioral neuroscience, neuropsychopharmacology, and cognitive biology. Developed across decades of empirical investigation into learning, memory, anxiety, and motor coordination, these apparatuses allow quantitative dissection of the neural substrates governing allocentric navigation, working memory buffers, and affective behavioral states. By interrogating an animal's spatial trajectory, researchers extract high-dimensional parametric metrics—ranging from escape latency and Gallagher proximity to spontaneous alternation percentages and thigmotactic perimeter coefficients.
1. Neurobiological Foundations of Spatial Navigation & Affective States
Spatial navigation requires continuous coordination between cortical, hippocampal, and subcortical structures. In allocentric navigation—navigation anchored to distal external landmarks rather than self-movement cues—the hippocampal formation serves as the primary computational engine. Pyramidal neurons within hippocampal subfields $\text{CA1}$ and $\text{CA3}$ operate as place cells, firing selectively when an animal traverses specific spatial coordinates within an environment (the neuron's "place field"). This spatial firing is complemented by grid cells in the medial entorhinal cortex ($\text{MEC}$), which exhibit periodic hexagonal tessellations across physical space, providing an intrinsic metric coordinate grid.
Theta oscillations ($6\text{--}10\text{ Hz}$ in rodents) coordinate local field potentials throughout the septohippocampal axis, organizing spike timing via theta phase precession. This temporal compression enables spike-timing-dependent plasticity ($\text{STDP}$) at recurrent collaterals, facilitating the consolidation of sequential place field representations into long-term declarative memories.
Conversely, unconditioned fear and anxiety behaviors engage distinct corticolimbic circuits. When exposed to brightly illuminated, elevated, or open environments, rodents display thigmotaxis (compulsive wall-following or perimeter hugging) and open-space avoidance. This ethological conflict balances an innate exploratory drive (foraging for food, mates, and shelter) against predation risk. The amygdala complex—specifically the basolateral amygdala ($\text{BLA}$) projecting to the ventral hippocampus ($\text{vHPC}$) and medial prefrontal cortex ($\text{mPFC}$)—modulates these avoidance behaviors, with elevated serotonergic and GABAergic tone shifting the equilibrium between anxious arrest and active exploration.
2. Mathematical Formulations & Ethological Metrics
Each behavioral apparatus in this simulator evaluates specific cognitive or emotional dimensions governed by precise mathematical formalisms.
2.1 Morris Water Maze Escape Latency & Spatial Proximity
Originally formulated by Richard Morris in 1981, the Morris Water Maze ($\text{MWM}$) assesses hippocampal-dependent spatial reference memory. The primary kinetic metric is escape latency $T_{escape}$, defined as the temporal duration required for the animal to transition from initial immersion to stationary rest upon the hidden platform $\Omega_{plat}$:
$$T_{escape} = \int_{0}^{T_{target}} \mathbb{I}\Big(\mathbf{p}(t) \notin \Omega_{plat}\Big)\, dt$$
To eliminate artifactual swimming speed variations, Gallagher et al. formulated the Cumulative Spatial Distance / Proximity Index ($D_{prox}$), measuring the time-integrated Euclidean distance between the animal's coordinates $\mathbf{p}(t) = (x(t), y(t))$ and the platform center $\mathbf{p}^* = (x^*, y^*)$:
$$D_{prox} = \frac{1}{T_{escape}} \int_{0}^{T_{escape}} \|\mathbf{p}(t) - \mathbf{p}^*\|_2\, dt$$
In probe trials (where the platform is removed to assess spatial retention), quadrant occupancy ratio $Q_{target}$ and spatial information entropy $H$ quantify the search focus:
$$H = -\sum_{k=1}^{K} P_k \log_2(P_k), \quad \text{where } P_k = \frac{1}{T_{total}} \int_{0}^{T_{total}} \mathbb{I}\Big(\mathbf{p}(t) \in \text{Quadrant}_k\Big)\, dt$$
2.2 Elevated Plus Maze Anxiety Index
The Elevated Plus Maze ($\text{EPM}$) quantifies anxiety-like phenotypes by placing the rodent at the intersection of two opposing enclosed arms and two opposing open arms elevated above floor level. The comprehensive Anxiety Index ($\text{AI}$) synthesizes both duration and entry frequency across compartments:
$$\text{AI} = 1 - \frac{1}{2}\left( \frac{T_{open}}{T_{total}} + \frac{N_{open}}{N_{total}} \right)$$
where $T_{open}$ is total duration spent on open arms, $T_{total}$ is session time, $N_{open}$ is total open-arm entries, and $N_{total}$ is cumulative entries across all four arms. An anxiety index approaching $1.0$ indicates pronounced open-arm avoidance (anxiogenesis), whereas values below $0.5$ indicate anxiolytic behavioral disinhibition.
2.3 Y-Maze Spontaneous Alternation & Working Memory Ratio
The Y-Maze evaluates spatial working memory driven by rodents' innate drive to alternate visits among three symmetrical arms ($\text{A, B, C}$) separated by $120^\circ$. An alternation is defined as sequential entry into three unique arms in non-repeating triads (e.g., $\text{ABC}$, $\text{BCA}$, or $\text{CAB}$):
$$R_{alt} = \frac{\sum_{i=1}^{N - 2} \mathbb{I}\Big(|\{\mathcal{A}_i, \mathcal{A}_{i+1}, \mathcal{A}_{i+2}\}| = 3\Big)}{N - 2} \times 100\%$$
Intact animals display alternation ratios exceeding $65\text{--}70\%$, whereas prefrontal cortex lesions, hippocampal disruption, or muscarinic receptor blockade reduce $R_{alt}$ to chance levels ($50\%$), indicating working memory decay or perseverative stereotypy.
2.4 Radial Arm Maze Working vs Reference Memory Errors
In Olton's 8-Arm Radial Maze ($\text{RAM}$), food wells at arm terminals test two distinct memory components: Reference Memory (invariable knowledge of baited versus unbaited arms across days) and Working Memory (the trial-specific scratchpad tracking arms entered during the active session).
$$\text{WME} = \sum_{j=1}^{M} \mathbb{I}\Big(\text{Arm } j \text{ re-entered within the current trial}\Big)$$
$$\text{RME} = \sum_{k=1}^{M} \mathbb{I}\Big(\text{Arm } k \text{ entered } \mid k \in \mathcal{U}_{unbaited}\Big)$$
2.5 Open Field Test & Thigmotaxis Coefficient
In the Open Field Test ($\text{OFT}$), the thigmotaxis coefficient $C_{thigmo}$ formalizes the proportion of session time spent within the peripheral boundary zone $\Omega_{peri}$ (distance to arena wall $d \le \delta_{wall}$):
$$C_{thigmo} = \frac{\int_{0}^{T_{total}} \mathbb{I}\Big(\text{dist}(\mathbf{p}(t), \partial\Omega) \le \delta_{wall}\Big)\, dt}{T_{total}}$$
3. Neuropharmacological Phenotypes & Circuit Dynamics
This simulator implements six distinct neurobiological presets with dynamic parameter weighting:
- Wild-Type Control ($\text{WT}$): Intact hippocampal place cell coordination, balanced thigmotactic exploration, and robust working memory retention ($\tau_{WM} \gg 8\text{ arms}$).
- Hippocampal Lesion / NMDA Receptor Antagonism ($\text{AP5}$): Targeted disruption of $\text{NMDAR}$-mediated long-term potentiation in subfields $\text{CA1/CA3}$. Abolishes allocentric vector navigation, converting direct trajectories into random, meandering swimming paths and thigmotactic loops.
- Anxiolytic Modulation ($\text{Diazepam}$): Positive allosteric modulation of $\text{GABA}_A$ receptors containing $\alpha_2/\alpha_3$ subunits within the amygdala and ventral hippocampus. Drastically lowers $\alpha_{anx}$, increasing open-arm exploration in the $\text{EPM}$ and center transit in the $\text{OFT}$.
- Anxiogenic State ($\text{Acute Stress / Yohimbine}$): $\alpha_2$-adrenergic antagonism and stress-induced hyperactivation of the locus coeruleus-corticolimbic axis. Elevates thigmotaxis ($C_{thigmo} \to 1.0$), increases freezing episodes, and causes immediate avoidance of open elevated ledges.
- Prefrontal Cortex Deficit ($\text{Perseveration}$): Attenuates working memory buffers in the prelimbic and infralimbic cortex ($\text{PL/IL}$), leading to perseverative stereotypy in the Y-maze and radial arm maze where the animal repeatedly enters previously visited arms.
- Cholinergic Deficit ($\text{Scopolamine}$): Muscarinic cholinergic receptor blockade disrupts encoding in the septohippocampal projection, inducing concurrent elevations in both working memory errors ($\text{WME}$) and reference memory errors ($\text{RME}$).

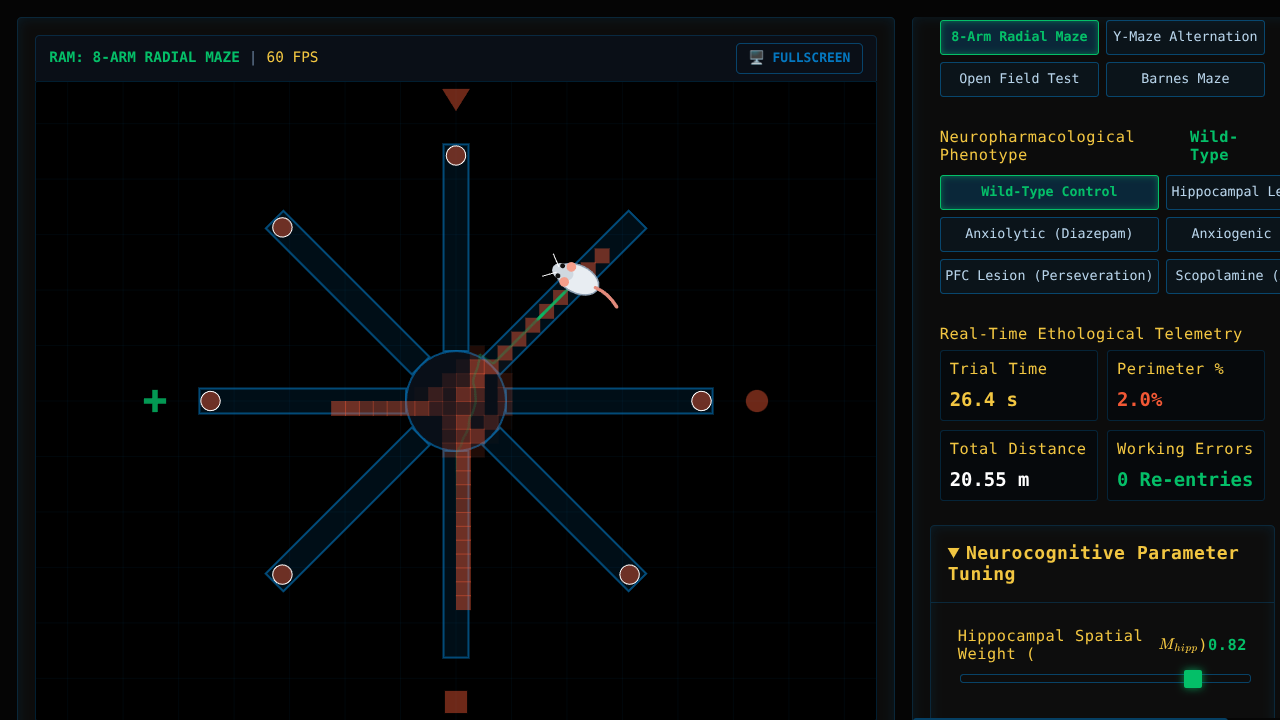

4. Interactive Laboratory Controls & Direct Canvas Manipulation
The visualizer features direct, bi-directional tactile manipulation. Click or drag the simulated rodent to reposition it instantly at any arbitrary coordinate. In the Morris Water Maze, drag the submerged platform to alter target quadrants. In the 8-Arm Radial Maze, click arm endpoints to toggle bait pellets. In the Open Field Test, drag the novel objects to evaluate recognition exploration.
