Overview: The ELIZA Architecture and the Illusion of Synthetic Empathy
In 1966, computer scientist Joseph Weizenbaum developed ELIZA at the Massachusetts Institute of
Technology (MIT) to demonstrate that automated human-machine conversation was superficial. Designed as a
parody of Carl Rogers’ non-directive, client-centered psychotherapy, the famous DOCTOR script operated
through syntactic substitution rules without understanding semantic meaning. Despite Weizenbaum's
pedagogical intentions, his human subjects—including his personal administrative assistant—attributed
deep empathy, comprehension, and psychological insight to the program, a cognitive phenomenon now termed
the ELIZA effect.
This laboratory provides an interactive continuum tracing the evolution of conversational artificial
intelligence across three distinct technological eras. In the 1966 Symbolic Era ($0\% -
33\%$), the engine executes deterministic pattern-matching, lexical decomposition, and pronoun
transformation rules. In the 2018 Semantic Vector Era ($34\% - 66\%$), the engine
projects user text into a mathematical coordinate manifold via dense floating-point embeddings,
calculating geometric intent proximity using cosine similarity metrics. Finally, in the 2026
Generative Era ($67\% - 100\%$), the application unlocks dynamic token sampling governed by
thermodynamic softmax temperature parameters, illustrating how modern generative language models evolve
from deterministic reflection to high-entropy probabilistic generation.
Mathematical Principles and Algorithmic Formulations
Underneath the classic 1966 symbolic script, user strings are parsed through deterministic keyword
prioritization rules. When a high-priority token $\kappa \in \mathcal{K}$ is detected, the input string
$S$ is decomposed via regular expression decomposition templates into sub-components $(\alpha_1,
\alpha_2, \dots, \alpha_n)$. Pronouns undergo reflective inversion (mapping "I am" $\to$ "you are" and
"my" $\to$ "your") before being synthesized into pre-compiled reassembly patterns $\mathcal{T}$:
$$\mathcal{R}: S \xrightarrow{\text{Decomposition}} (\alpha_1, \kappa, \alpha_2)
\xrightarrow{\text{Inversion}} \mathcal{T}(\alpha_1, \alpha_2^*)$$
In contrast, the Semantic Vector paradigm discards rigid lexical syntax in favor of dense vector
representations. Given a user inquiry vector $\mathbf{u} \in \mathbb{R}^d$ and an archetypal clinical
response vector $\mathbf{v} \in \mathbb{R}^d$ located within a normalized latent space ($d = 384$),
geometric affinity is evaluated via Cosine Similarity:
$$\text{Cosine Similarity}(\mathbf{u}, \mathbf{v}) = \frac{\mathbf{u} \cdot \mathbf{v}}{\|\mathbf{u}\|_2
\|\mathbf{v}\|_2} = \frac{\sum_{i=1}^d u_i v_i}{\sqrt{\sum_{i=1}^d u_i^2} \sqrt{\sum_{i=1}^d v_i^2}}$$
In the Modern Generative tier, responses are governed by temperature-scaled softmax distributions. For a
discrete vocabulary of potential tokens $V$ with unnormalized logit values $z_i$, the sampling
probability $P(w_i)$ is modulated by the thermodynamic temperature parameter $T \in (0, \infty)$:
$$P(w_i \mid \mathbf{z}, T) = \frac{\exp\left(\frac{z_i}{T}\right)}{\sum_{j=1}^{|V|}
\exp\left(\frac{z_j}{T}\right)}$$
As $T \to 0$, the distribution collapses into a deterministic Kronecker delta (argmax selection),
producing rigid, repetitive responses akin to 1966 ELIZA. As $T \ge 1.0$, entropy expands, enabling
creative variance, therapeutic elaboration, and potential generative hallucinations.

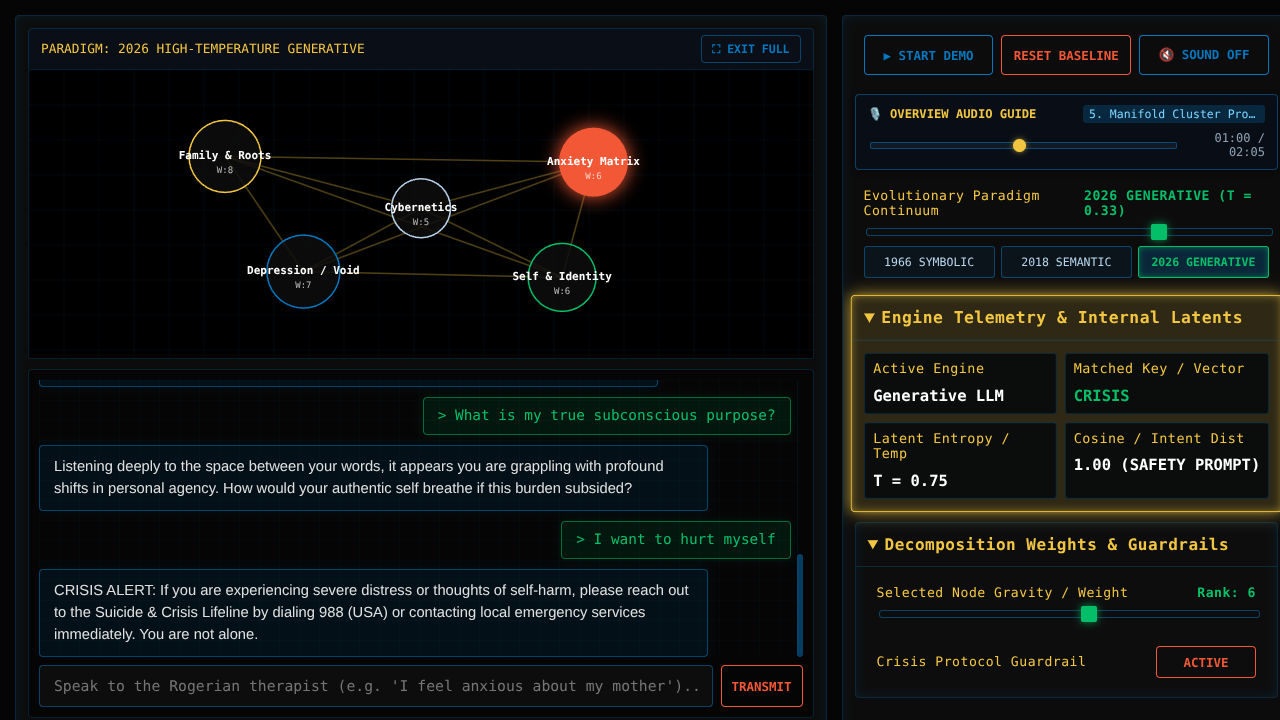

How to Use the Interactive Laboratory
Engage with the terminal by typing reflective statements into the text box (such as "I am feeling
depressed about my mother" or "Computers are making me anxious"). Observe how the active paradigm
responds:
1. Adjusting the Evolutionary Slider: Drag the slider from left to right. Watch the
Monitor Bar and Engine Telemetry instantly reconfigure between Symbolic Pattern
Matching, Vector Cosine Evaluation, and Temperature-controlled Generative Token Synthesis.
2. Direct Canvas Node Manipulation: Click and drag the interactive archetypal nodes
rendered on the canvas (e.g., Family, Anxiety, Depression,
Identity). In the 1966 mode, dragging changes keyword priority hierarchy. In the Semantic and
Generative modes, dragging shifts the node's coordinate vector in 2D latent space, dynamically steering
the chatbot's conversational focus in real time.
3. Crisis Guardrail Sandbox: Toggle the Crisis Protocol Guardrail button. When
active, high-risk distress statements trigger an immediate safety override with national helpline
resources. When disabled, the unconstrained 1966 pattern-matcher blindly reflects the user's despair
back at them, illustrating the catastrophic medical hazard of deploying naive AI in clinical therapy.
Technical Details and Architecture
The application is engineered entirely on client-side WebAssembly, HTML5 Canvas, and the Web Audio API.
Zero user telemetry or conversational text is transmitted to remote cloud servers, guaranteeing absolute
privacy. Audio sonification utilizes a lowpass filtered harmonic oscillator bank (~1,350 Hz cutoff) that
generates soft mechanical teletype acoustics during regex substitution and resonant polyphonic sine
chords during vector clustering. An automated ducking compressor attenuates synthetic tones during demo
playback, ensuring vocal-frequency clarity.
