Biomechanical Goniometry & Digital Joint Kinematics
Precision measurement of human joint angles and Range of Motion (ROM) forms the clinical cornerstone of orthopedics, physical therapy, sports science, and neuro-rehabilitation. Historically conducted using mechanical universal goniometers, digital movement analysis has transitioned toward browser-based vector trigonometry, optical landmark tracking, and real-time auditory biofeedback. This platform provides an interactive digital goniometric simulator and biomechanical analysis laboratory, computing instantaneous two-dimensional joint articulation, angular rate of change, and normative range limits.
1. Vector Trigonometry & Mathematical Formulation
A planar goniometer computes the articulation angle $\theta$ subtended between three spatial anatomical landmarks: a proximal marker $A(x_a, y_a)$, a pivotal joint center of rotation $B(x_b, y_b)$, and a distal marker $C(x_c, y_c)$. From these landmark coordinates, two planar Euclidean direction vectors are derived:
$$\vec{u} = \vec{BA} = (x_a - x_b)\,\hat{i} + (y_a - y_b)\,\hat{j}$$
$$\vec{v} = \vec{BC} = (x_c - x_b)\,\hat{i} + (y_c - y_b)\,\hat{j}$$
While elementary trigonometry computes the angle via the inner scalar dot product $\vec{u} \cdot \vec{v} = \|\vec{u}\| \|\vec{v}\| \cos\theta$, digital systems favor the two-argument four-quadrant arctangent formulation. This avoids numerical instability and arccosine clipping when floating-point precision yields values exceeding $[-1.0, 1.0]$:
$$\theta = \operatorname{atan2}\left(\det[\vec{u}, \vec{v}],\ \vec{u} \cdot \vec{v}\right) = \operatorname{atan2}\left(u_x v_y - u_y v_x,\ u_x v_x + u_y v_y\right)$$
The resulting angle $\theta \in [0, \pi]$ radians is mapped directly to sexagesimal degrees:
$$\theta_{\text{deg}} = \frac{180}{\pi} \cdot |\theta|$$
In clinical kinematics governed by International Society of Biomechanics (ISB) standards, joint angles are reported according to anatomical neutral reference postures (0° full extension) rather than raw planar Euclidean supplementary angles (180° straight line). The digital goniometer allows instantaneous toggling between the standard ISB neutral deviation and geometric supplementary angles:
$$\theta_{\text{ISB}} = 180^\circ - \theta_{\text{geometric}}$$
2. Instantaneous Angular Kinematics & Dynamic Noise Attenuation
Joint motion is inherently dynamic. Quantifying mechanical impairment requires not only static range-of-motion end-feel, but also time-resolved angular velocity $\omega(t)$ and angular acceleration $\alpha(t)$. At a discrete sampling time step $\Delta t$, first-order backward numerical differentiation yields:
$$\omega(t) = \frac{\theta(t) - \theta(t - \Delta t)}{\Delta t}$$
$$\alpha(t) = \frac{\omega(t) - \omega(t - \Delta t)}{\Delta t}$$
Because numerical differentiation amplifies high-frequency optical tracking noise and manual cursor jitter, an Exponential Moving Average (EMA) recursive digital filter is incorporated into the kinematic pipeline:
$$\hat{\theta}_k = \alpha_{\text{filter}} \cdot \theta_k + (1 - \alpha_{\text{filter}}) \cdot \hat{\theta}_{k-1}$$
where $\alpha_{\text{filter}} \in (0, 1]$ dictates the filter cutoff frequency. When set to $\alpha = 0.35$, the visualizer preserves physiological movement transients while attenuating synthetic landmark vibration and discrete pixel quantization noise.
3. Clinical Normative Ranges & Pathological Envelopes
Diagnostic biomechanics benchmarks patient joint excursion against established population norms. The simulator embeds physiological ranges for five primary anatomical articulations:
- Tibiofemoral Joint (Knee Flexion/Extension): Functional ambulation requires $0^\circ$ extension to $135^\circ$–$145^\circ$ active flexion. Hyperextension beyond $-5^\circ$ indicates genu recurvatum, whereas flexion contracture indicates capsular tightness or hamstring spasticity.
- Humeroulnar Joint (Elbow Flexion/Extension): Standard physiological range is $0^\circ$ extension to $145^\circ$–$150^\circ$ flexion. Activities of daily living (ADLs) necessitate a functional arc of at least $30^\circ$ to $130^\circ$.
- Glenohumeral Joint (Shoulder Abduction): Full unconstrained scapulohumeral rhythm provides $0^\circ$ to $180^\circ$ of coronal abduction, requiring coordinated $2:1$ humerothoracic to scapulothoracic kinematics.
- Acetabulofemoral Joint (Hip Flexion): Active hip flexion with knee bent spans $0^\circ$ to $120^\circ$–$125^\circ$. Restriction below $90^\circ$ severely compromises normal gait cycle stance and stair negotiation.
- Talocrural Joint (Ankle Dorsiflexion/Plantarflexion): From a $90^\circ$ neutral foot position, normal dorsiflexion attains $20^\circ$ and plantarflexion spans $45^\circ$–$50^\circ$.
4. Real-Time Sonification & Acoustic Biofeedback Architecture
Biofeedback via sensory substitution accelerates motor re-learning in neuromuscular rehabilitation. The embedded Web Audio engine synthesizes a continuous auditory stream parameterized directly by instantaneous joint angle $\theta$. The fundamental oscillator frequency $f_{\text{audio}}$ is mapped exponentially to match human tonotopic auditory perception:
$$f_{\text{audio}}(\theta) = f_0 \cdot 2^{\left(\frac{\theta}{\theta_{\max}} \cdot N_{\text{octaves}}\right)}$$
where $f_0 = 180\text{ Hz}$ represents the baseline frequency and $N_{\text{octaves}} = 2.0$. As the joint flexes toward terminal range of motion, the audio pitch rises smoothly toward $720\text{ Hz}$. A bi-quad lowpass smoothing filter centered at $1,200\text{ Hz}$ strips harsh harmonics to eliminate acoustic fatigue and prevent speech masking during clinical narration. Discrete resonant pings trigger at 45° and 90° intervals to provide discrete acoustic confirmation of therapeutic targets.
5. How to Use the Laboratory
- Preset Selection: Click any button under Joint Anatomical Preset (Knee, Elbow, Shoulder, Hip, Ankle, or Free 3-Pin) to load the corresponding anatomical kinematics or freestanding goniometer.

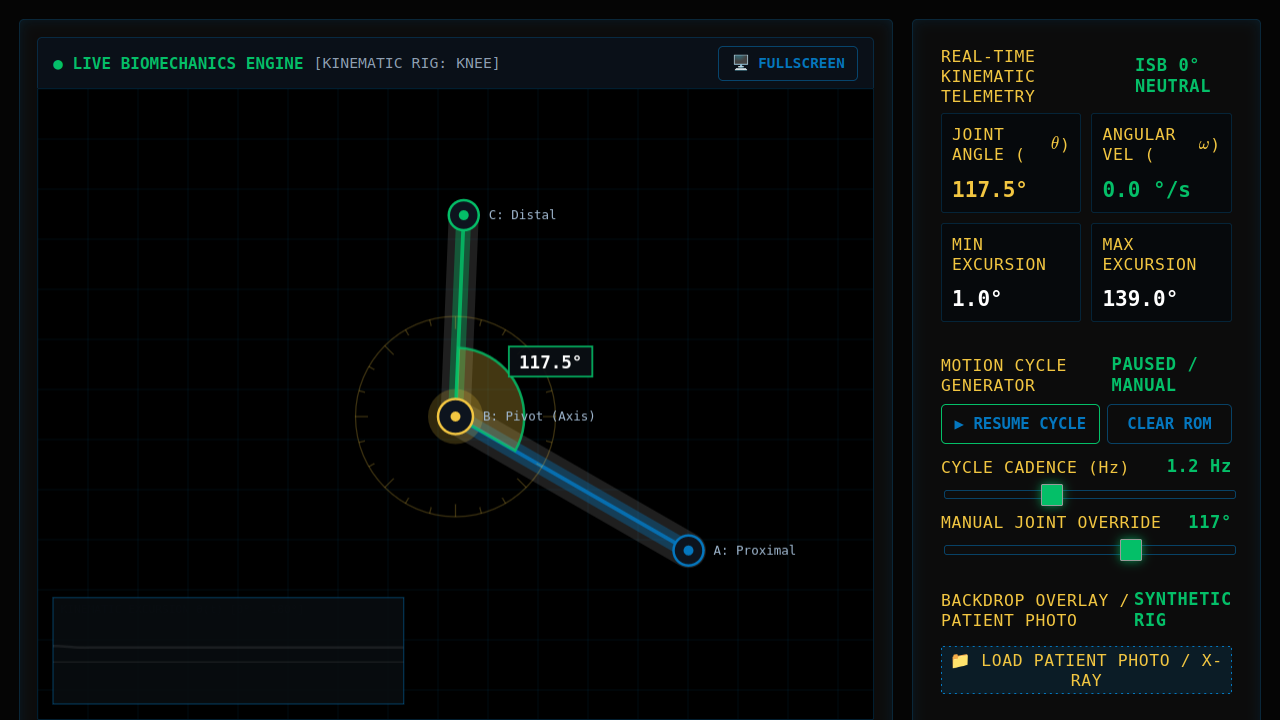

- Direct Interactive Manipulation: Click and drag any of the three pins (Proximal Marker $A$, Joint Axis $B$, Distal Marker $C$) directly on the canvas to place landmark markers anywhere in 2D space.
- Dynamic Cycling vs. Manual Override: Use Pause Cycle and adjust the Manual Joint Override slider to hold any specific static posture. Re-engage the cycling generator to examine continuous velocity waveforms.
- Patient Photo / X-Ray Overlay: Click Load Patient Photo / X-Ray to import real fluoroscopy images, clinical photographs, or athlete videos for instant manual goniometric digitization directly in the browser.
- Automated Audio Guide & Demo Mode: Press Start Demo to observe a scripted, narrated biomechanical walkthrough with automated parameter tweening and visual cue highlights.
