1. Clinical & Biophysical Overview of Huntington's Disease
Huntington's Disease (HD) is an inevitably fatal, autosomal dominant neurodegenerative disorder. It is unequivocally driven by a dynamic cytosine-adenine-guanine ($CAG$) trinucleotide repeat expansion located within Exon 1 of the Huntingtin ($\text{HTT}$) gene, mapped to the short arm of chromosome 4 (4p16.3). This mutation forces the biological translation of an abnormally elongated polyglutamine ($polyQ$) tract at the N-terminus of the resulting $m\text{HTT}$ protein. Under normal physiological conditions, healthy human alleles contain between $10$ and $26$ $CAG$ units. Alleles spanning $27\text{ to }35$ repeats are non-penetrant but demonstrate high meiotic instability, making them prone to further expansion during spermatogenesis. Tracts containing $36\text{ to }39$ repeats enter the zone of reduced penetrance, meaning disease onset may or may not occur within a natural lifespan. Expansions of $\ge 40$ repeats result in deterministic, fully penetrant Huntington's disease. Furthermore, devastating expansions exceeding $60$ repeats prompt early juvenile HD, known as the Westphal variant. This variant presents a deep clinical paradox: instead of hyperkinetic chorea, it manifests with early onset severe rigidity, bradykinesia, profound dystonia, and epileptic encephalopathy.
From a neuropathological perspective, HD exerts its primary neurotoxicity within the striatum—which comprises the caudate nucleus and the putamen—before diffusing globally to the cerebral cortex and subthalamic geometries. The benchmark post-mortem pathological classification system for this anatomical collapse was formulated by Jean-Paul Vonsattel et al. (1985), tracking the structural deterioration across five distinct grades:
- Vonsattel Grade 0: The patient exhibited clinically documented Huntington's disease in life, yet standard macroscopic morphometry and light microscopy reveal no distinguishable striatal cell death.
- Vonsattel Grade 1: Macroscopically, the brain contour remains intact with preserved ventricular geometry. However, microscopic inspection reveals a regional depletion of medium spiny projection neurons ($MSNs$) concentrated in the dorsomedial head of the caudate, accompanied by early reactive fibrillary astrogliosis.
- Vonsattel Grade 2: Evident macroscopic striatal atrophy begins. The medial border of the caudate head maintains its physiological convex bulge projecting into the lateral ventricle, but prominent neuronal loss ($>50\%$) and dense, widespread reactive astrogliosis are deeply embedded.
- Vonsattel Grade 3: Severe striatal volume collapse. The hallmark convex medial contour of the caudate head completely flattens into a linear structural wall. This massive localized tissue loss prompts secondary compensatory hydrocephalus ex vacuo, visibly widening the frontal horns of the lateral ventricles.
- Vonsattel Grade 4: The end-stage structural apocalypse. Up to $95\%$ of all striatal medium spiny neurons are eradicated. The caudate head profile collapses into a severely concave (sunken) geometry, resulting in the classic radiographic "boxcar" or "butterfly" ventricular dilation pattern (where the Evans Index exceeds $0.42$). Secondary neocortical thinning and massive white matter depletion follow.
The hallmark hyperkinetic motor symptom of the adult-onset disease—chorea (involuntary, jerky, erratic, dance-like movements)—arises entirely from a precise temporal dissociation in the destruction of two opposing striatal projection populations. Medium spiny neurons expressing Dopamine D2 receptors and Enkephalin (constituting the striatopallidal indirect pathway) degenerate years prior to those expressing Dopamine D1 receptors and Substance P (the striatonigral direct pathway). Under healthy conditions, the indirect pathway acts as the physiological "brake" of the motor loop. Its premature ablation massively disinhibits the external globus pallidus ($GPe$), which in turn hyper-suppresses the subthalamic nucleus ($STN$). The STN loses its excitatory grip on the internal globus pallidus ($GPi$), resulting in a catastrophic drop in inhibitory drive to the motor thalamus. The thalamus, left unchecked, bombards the cortex with chaotic, dysrhythmic motor bursts. Years later, as the disease advances to terminal stages, the direct pathway ($D_1$) finally collapses, permanently removing the "gas pedal." The motor thalamus becomes locked under immense inhibition, extinguishing the chorea and trapping the patient in a state of rigid bradykinesia.
3. Mathematical Formulations & Computational Architecture
The simulation architecture heavily couples numerical integration of nonlinear population rate dynamics with anatomical morphometric spline deformation, parameter tweening, and Web Audio DSP synthesis to execute a fully deterministic physiological model.
3.1 Cortico-Basal Ganglia-Thalamocortical Dynamical System
Neural population firing rates are integrated continuously via a 4th-order Runge-Kutta ($\text{RK4}$) numerical algorithm. The system tracks the mean-field firing dynamics across six coupled anatomical regions: Cortex ($CTX$), Striatal D1 MSNs ($D_1$), Striatal D2 MSNs ($D_2$), External Globus Pallidus ($GPe$), Subthalamic Nucleus ($STN$), and the Internal Globus Pallidus / Substantia Nigra pars reticulata complex ($GPi$). The governing ordinary differential equation (ODE) for each population $i$ is defined as:
$$\tau_i \frac{dr_i}{dt} = -r_i(t) + \mathcal{S}\left( \sum_{j} W_{ij} r_j(t) + I_i^{\text{ext}} + \xi_i(t) \right)$$
where $\tau_i$ represents specific population time constants ($\tau_{CTX}=15\text{ ms}$, $\tau_{STN}=10\text{ ms}$, $\tau_{GPe}=12\text{ ms}$, $\tau_{GPi}=14\text{ ms}$), $\xi_i(t)$ introduces stochastic synaptic noise representing asynchronous background afferents, and $\mathcal{S}(u)$ dictates the nonlinear sigmoidal activation threshold for the neuronal cluster:
$$\mathcal{S}(u) = \frac{1}{1 + \exp\left(-\beta(u - \theta)\right)}$$

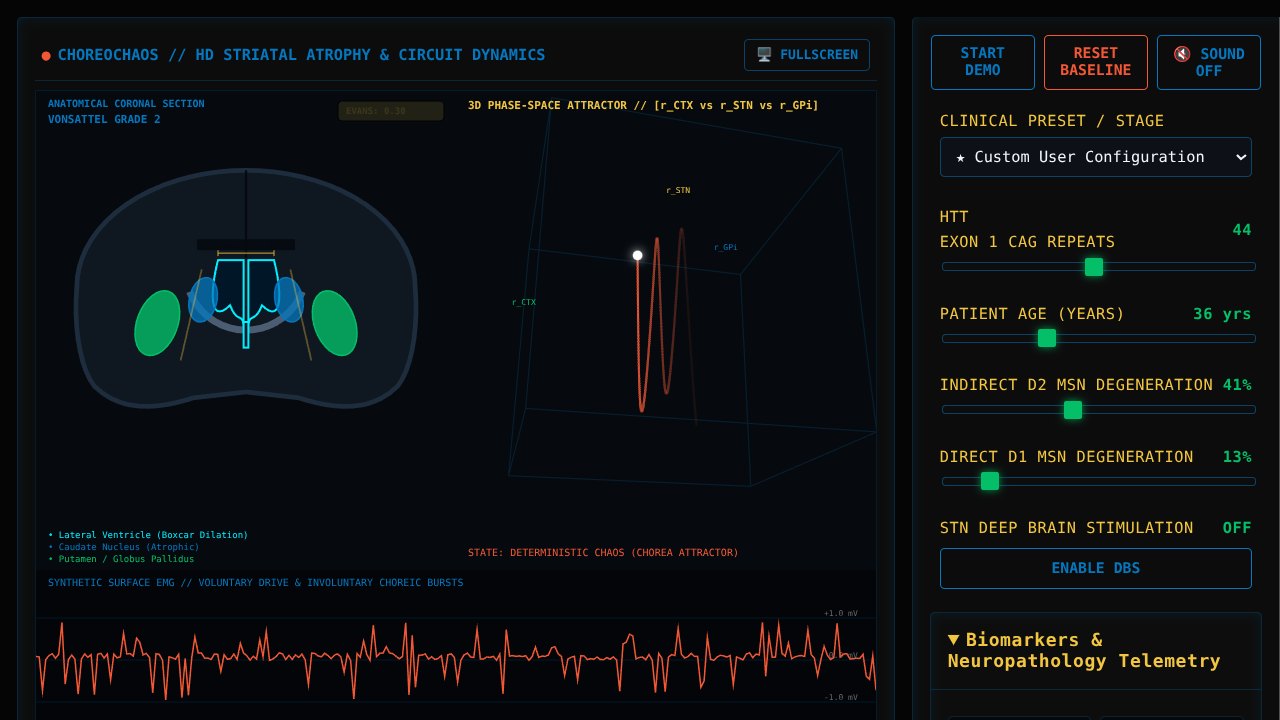

As the slider variables for $D_1$ and $D_2$ neuronal loss are manually increased by the user, the intrinsic weights ($W_{ij}$) projecting from the striatum to the pallidal targets are proportionally scaled down. The moment the $D_2$ loss crosses a critical threshold, the resultant eigenvalues of the system matrix cross into a positive real space, generating a mathematically chaotic attractor visible on the 3D phase-space graph.
3.2 Cumulative Pathological Exposure: The CAP Score
The cumulative biological exposure to the toxic mutant huntingtin protein is not determined by age or genetics alone, but by their integration over time. This is quantified dynamically in the telemetry panel using the standard centered CAG-Age-Product ($\text{CAP}_R$) index:
$$\text{CAP}_R = \text{Age} \times \frac{\text{CAG} - L_0}{S_0}$$
where the constant $L_0 = 33.66$ represents the zero-penetrance baseline repeat offset (the threshold below which no toxicity accrues) and $S_0 = 432.33$ serves as the scaling denominator. Within this laboratory, the calculated $\text{CAP}_R$ exposure actively drives the interpolation routines that modify the tension of Bézier curves in the Vonsattel ventricle rendering engine, seamlessly flattening and eventually caving in the caudate geometry.
3.3 Real-Time Demo Interpolation Engine
To provide a human-paced, podcast-driven physiological learning cadence, the automated timeline milestones utilize a continuous linear ramp interpolation algorithm executing precisely within the primary `requestAnimationFrame` loop. Let the simulation state vector be defined as $S(t) = \{CAG, Age, D1_{\text{loss}}, D2_{\text{loss}}\}$. The transition equation operates as:
$$S(t) = S_{\text{start}} + (S_{\text{target}} - S_{\text{start}}) \times \min\left(1.0, \frac{t - t_0}{\Delta t}\right)$$
This ensures that as audio chapters trigger sweeping biological changes over 4 to 5 seconds ($\Delta t$), the UI elements physically glide into place, continuously re-solving the RK4 system through thousands of intermediate pathological states to accurately reveal non-linear phase bifurcations—such as the exact millisecond the maximum Lyapunov exponent exceeds zero ($\lambda_{\max} > 0$), mathematically yielding chaotic chorea.
