Digital Image Forensics & Medical Image Fraud Detection
Overview: Biophysical & Mathematical Foundations
In modern biomedical research, high-resolution visual evidence—ranging from Western blot gel chemiluminescence arrays to metaphase chromosome karyotyping—forms the baseline structural proof for molecular pathways, genetic abnormalities, and therapeutic efficacy. However, the ubiquity of digital graphics editors has introduced significant vulnerability to image tampering, including copy-move cloning (duplicating band lanes or chromosome structures), region splicing (transplanting features across separate gels), contrast masking, and local noise smoothing.
Digital Image Forensics (DIF) utilizes mathematical transforms, statistical error modeling, and information theory to verify bitmap integrity without requiring prior digital watermarks or embedded cryptographic signatures. When an uncompressed raw image $I_{orig}(x,y)$ undergoes lossy compression, linear transformation, or localized patch duplication, distinct mathematical signatures are imprinted into the pixel matrix. The primary analytical protocols evaluated in this interactive visualizer include Error Level Analysis (ELA), Copy-Move Clone Detection via block-matching correlation, Principal Component Analysis (PCA) subspace reconstruction residual mapping, spatial gradient field inspection, and bit-plane decomposition.

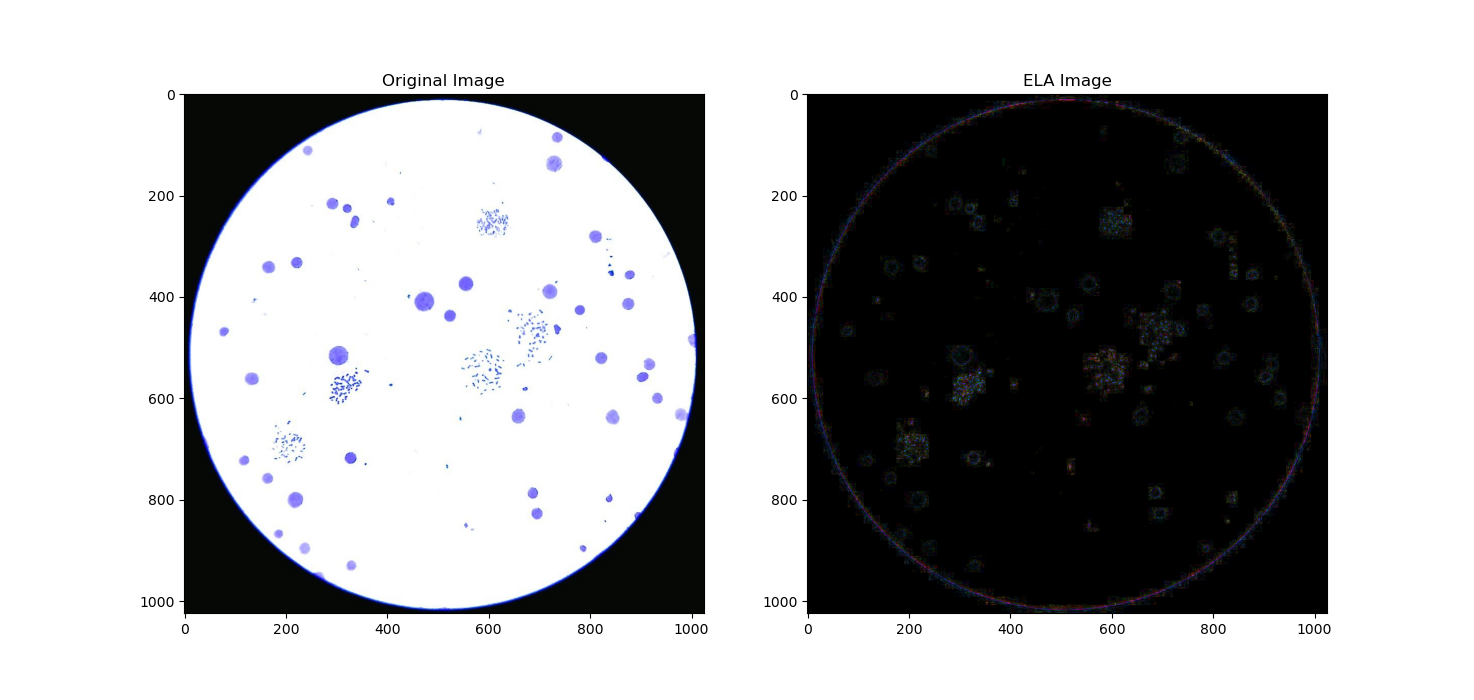

Error Level Analysis relies on the non-linear quantization behavior of the Discrete Cosine Transform (DCT) during JPEG lossy compression. Under uniform re-compression at a known quality factor $Q$, unmodified regions that have previously reached compression equilibrium exhibit low error magnitude, whereas freshly edited, pasted, or re-saved image patches exhibit heightened differential variance. Mathematically, given an original image matrix $I(x,y,c)$ across color channels $c \in \{R, G, B\}$ and its re-compressed counterpart $Q_{q}(I)(x,y,c)$, the ELA spatial difference map $D(x,y)$ is formulated as:
$$D(x,y) = \min\left(255, S \cdot \sqrt{\sum_{c \in \{R,G,B\}} \left( I(x,y,c) - Q_{q}(I)(x,y,c) \right)^2 }\right)$$
where $S \ge 1$ represents an empirical scaling boost factor designed to map subtle compression differences into human-perceptible luminance dynamic ranges.
How to Use: Interactive Diagnostics & Control Guide
The interactive laboratory sandbox allows researchers and forensic auditors to examine sample biological micrographs, Western blot arrays, and chromosome metaphase spreads under active forensic scrutiny. Below is the operational workflow:
- Primary Command Hierarchy: Use the
Start Demo button at the top of the control console to initiate an automated diagnostic loop that cycles through analysis protocols, shifts sample targets, and highlights anomalous regions. Click Reset Baseline at any point to restore default algorithm parameters instantly. Toggle audio sonification using 🔇 SOUND OFF to enable pitch-mapped acoustic diagnostic feedback during cursor inspection.
- Target Image Selection: Choose from standard diagnostic targets, including
Chromosome Metaphase Spread (Chromosome.jpeg), Gel Array Fraud (GelArrayFraud.jpg), baseline control samples, or generate a dynamic Procedural Synthetic Gel Fraud Pattern. You can also check Inject Synthetic Spliced Patch to dynamically inject an artificial spliced region into any active sample image for real-time validation.
- Error Level Analysis (ELA) Protocol: Adjust the
JPEG Quality Factor ($Q$) slider between 50% and 98%. Lower quality settings induce heavy high-frequency quantization dropouts, revealing localized non-uniformity in modified regions. Use the Difference Scaling Boost ($S$) slider to expand low-amplitude dynamic range differences.
- Copy-Move Clone Detection: Select Copy-Move Clone Detection in the protocol drop-down. Adjust the
Block Window Size ($W$) (16px to 64px) and Correlation Threshold ($T_{corr}$) (0.70 to 0.99). The visualizer partitions the bitmap into overlapping sliding tiles, computes normalized cross-correlation (NCC), applies non-maximum suppression (NMS), and highlights duplicate regions with green vector lines connecting matching source-target centroids.
- PCA Subspace Residual Mapping: Select PCA Patch Residual Subspace Map to project local image patches onto a reduced dimensional principal component basis. Adjust
Subspace Dimensions ($m$) to control the rank of the reconstruction matrix $\mathbf{V}_m$. Regions containing spliced high-frequency noise or unnatural edge transitions fail to project accurately into the dominant eigenspace, yielding high residual error $\| \mathbf{x} - \hat{\mathbf{x}} \|^2$ illuminated in glowing neon amber hotspots.
- Spatial Noise & Gradient Map: Inspect local luminance derivative fields $|\nabla I(x,y)| = \sqrt{I_x^2 + I_y^2}$ and local pixel variance $\sigma^2$ to detect boundary smoothing, localized sharpening filters, or erased background noise textures typical of gel band manipulation.
- Bit-Plane Slicing: Isolate binary bit-planes from Bit 7 (Most Significant Bit, MSB) down to Bit 0 (Least Significant Bit, LSB). Spliced images often display erratic noise patterns or structured artifacts in lower bit-planes where unedited images display pure uniform stochastic noise.
Technical Details: Engineering Architecture & Python Script Integration
The client-side visualizer executes high-speed parallelized image processing directly within an HTML5 Canvas backing buffer optimized for high-density ($DPR$) displays. The algorithmic architecture directly mirrors the standalone Python forensic scripts (ela.py, clone.py, and pca.py) provided in the repository:
# Python Implementation Reference: Error Level Analysis (ela.py)
import cv2
import numpy as np
from PIL import Image, ImageChops, ImageEnhance, ImageOps
def perform_ela(image_path, quality=90, scale=10):
original = Image.open(image_path).convert('RGB')
temp_image_path = 'temp_recompressed.jpg'
original.save(temp_image_path, 'JPEG', quality=quality)
recompressed = Image.open(temp_image_path)
ela_image = ImageChops.difference(original, recompressed)
extrema = ela_image.getextrema()
max_diff = max([ex[1] for ex in extrema])
scale_factor = 255.0 / max_diff if max_diff != 0 else 1
ela_image = ImageEnhance.Brightness(ela_image).enhance(scale_factor)
return ImageOps.autocontrast(ela_image)
For Copy-Move Forgery Detection, template block matching calculates Normalized Cross-Correlation (NCC) across overlapping square spatial windows $W_1$ and $W_2$ within an image matrix $I$:
$$\text{NCC}(W_1, W_2) = \frac{\sum_{x,y} \left(W_1(x,y) - \bar{W}_1\right) \left(W_2(x,y) - \bar{W}_2\right)}{\sqrt{\sum_{x,y} \left(W_1(x,y) - \bar{W}_1\right)^2 \sum_{x,y} \left(W_2(x,y) - \bar{W}_2\right)^2}}$$
Matches exceeding threshold $T_{corr}$ are filtered using non-maximum suppression (NMS) to eliminate self-overlapping candidate pairs where spatial displacement vector $\|\vec{d}\| = \sqrt{(x_1 - x_2)^2 + (y_1 - y_2)^2} < W$.
In PCA patch residual analysis (derived from pca.py), the image is flattened into $N$ overlapping patches $\mathbf{x}_i \in \mathbb{R}^d$ of dimension $d = W \times W$. The empirical mean vector $\mathbf{\mu} = \frac{1}{N}\sum_{i=1}^N \mathbf{x}_i$ is subtracted, yielding zero-centered data matrix $\mathbf{X}$. Singular Value Decomposition (SVD) identifies the top $m$ orthogonal eigenvectors $\mathbf{V}_m = [\mathbf{v}_1, \dots, \mathbf{v}_m]$. The patch reconstruction $\hat{\mathbf{x}}_i$ and residual error $E_i$ are given by:
$$\hat{\mathbf{x}}_i = \mathbf{\mu} + \mathbf{V}_m \mathbf{V}_m^T (\mathbf{x}_i - \mathbf{\mu}), \quad E_i = \|\mathbf{x}_i - \hat{\mathbf{x}}_i\|^2$$
Future Directions: Deep Forensics & Automated PubPeer Auditing
While classic hand-crafted forensic feature extractors like ELA and NCC patch correlation provide fast diagnostic capabilities, modern image manipulation techniques—including AI-driven generative adversarial network (GAN) inpainting and diffusion-based gel synthesis—demand next-generation deep learning architectures. Future enhancements for this laboratory module will incorporate:
- Dense Field SIFT/SURF Keypoint Matching: Replacing uniform spatial block sliding windows with invariant Scale-Invariant Feature Transform (SIFT) descriptors to detect copy-move cloning subjected to affine scaling, shear, and rotation.
- JPEG Ghost Analysis: Evaluating multi-compression curves across iterative quality steps $Q_1, Q_2, \dots, Q_n$ to pinpoint the exact previous compression parameters of spliced inserts.
- Deep Convolutional Neural Network (CNN) Artifact Localization: Integrating lightweight WebGL ONNX neural networks fine-tuned on public scientific fraud datasets (such as PubPeer flagged western blots) for automated anomaly scoring.
