Biophysical Dynamics of the Microelectrode-Retinal Interface
The fundamental stumbling block of the bionic eye—exemplified by the clinical and commercial challenges of Second Sight (Argus II) and Australia's Bionic Vision Technologies (BVT)—is not primarily an issue of digital camera optics or computational software. Instead, it represents an unyielding conflict at the physical and electro-chemical interface between non-biological platinum microelectrodes and delicate neural tissue.
1. The Shannon-McCann Charge Injection Safety Boundary
When stimulating surviving Retinal Ganglion Cells (RGCs) or bipolar interneurons, charge must cross the double-layer capacitance at the electrode-saline boundary. The maximum permissible charge injection per phase before triggering irreversible electrochemical water hydrolysis, platinum dissolution, toxic pH shifts, and cellular thermal apoptosis is governed by the Shannon-McCann equation:
$$\log(D) = k - \log(Q)$$
Here, $D = \frac{Q}{A}$ is the charge density per phase in $\mu\text{C}/\text{cm}^2$, $Q$ is the total charge injected per phase in $\mu\text{C}$, $A$ is the real geometric surface area of the electrode disk, and $k$ is the empirical neural damage parameter. Clinical consensus mandates that $k \le 1.75$ to $1.85$ to ensure that stimulation remains strictly within reversible capacitive and pseudocapacitive charge-transfer regimes:
$$k = \log\left(\frac{Q}{A}\right) + \log(Q)$$
When an implant recipient develops reactive scar tissue, the increased electrode-to-target distance forces the external processor to drive higher stimulation currents $I_{\text{stim}}$. As $I_{\text{stim}}$ climbs to overcome interfacial impedance, $k$ crosses into the dangerous regime ($k > 1.85$), initiating localized tissue necrosis and permanent loss of residual vision.
2. Electric Field Potential, Interfacial Impedance, and Current Spread
In a quasi-static, isotropic biological volume conductor of conductivity $\sigma$, the electric potential field $\Phi(r, z)$ generated by an active disk microelectrode positioned along the retinal surface is given by:
$$\Phi(r, z) = \frac{I_{\text{stim}}}{4 \pi \sigma \sqrt{r^2 + z^2}}$$
Where $r$ represents radial distance across the epiretinal plane and $z$ represents vertical depth into the retinal laminate. When a layer of reactive fibrous astrocytes and Müller glia of thickness $d_{\text{glia}}$ and low ionic conductivity $\sigma_{\text{scar}} \ll \sigma_{\text{vitreous}}$ wraps around the electrode array, total interfacial impedance $Z(\omega)$ escalates according to:
$$Z(\omega) = R_{\text{access}} + \frac{d_{\text{glia}}}{\sigma_{\text{scar}} A_{\text{geo}}} + \frac{1}{(j \omega C_{\text{dl}})^\alpha}$$
Because the glia act as an electrical insulator, current is forced to spread laterally across the low-resistance vitreous cavity before entering the retina. This induces severe current spread and spatial crosstalk. Neighboring electrodes no longer stimulate isolated receptive fields; instead, their electric fields bleed together into broad, amorphous phosphenes, destroying visual acuity.
3. The 1D vs. 2D Information Bottleneck: Why the Cochlear Implant Succeeded
A persistent question in neural engineering is why the cochlear implant (bionic ear) achieved worldwide commercial and clinical triumph while retinal prostheses repeatedly faltered. The mathematical explanation is found in information theory and neural anatomy:
$$\text{Capacity } C = B \cdot \log_2\left(1 + \frac{S}{N}\right)$$
- The Auditory Pathway (1D Linear Tonotopy): The human cochlea maps audio frequency along a stationary, one-dimensional coiled cylinder. Speech comprehension is driven primarily by temporal spectral envelope variations. A single flexible array with only 12 to 22 electrodes can replicate sufficient spectral peaks for natural speech recognition (requiring $\approx 10\text{ to }20\text{ kbps}$ of throughput). Furthermore, the cochlea is a rigid bony cavity that shields the implant from mechanical movement.
- The Visual Pathway (2D Dynamic Matrix): The human retina comprises over $1,000,000$ ganglion cell axons handling massive spatiotemporal concurrency—color channels, directional motion vectors, high-frequency spatial edges, and luminance gradients simultaneously (exceeding $>10\text{ Mbps}$). Trying to project a 3D physical environment onto a moving, spherical organ with an array of 60 to 256 electrodes yields severe spatial undersampling.
- Saccadic Shear Stress: Unlike the static inner ear, human eyes execute rapid ballistic saccades up to $900^\circ/\text{s}$ multiple times per second. The resulting shear strain $\tau = \mu \frac{\partial u}{\partial z}$ between the stiff, inorganic polyimide/platinum array and the fragile, wet retinal surface causes micro-abrasions, accelerating inflammatory encapsulation.

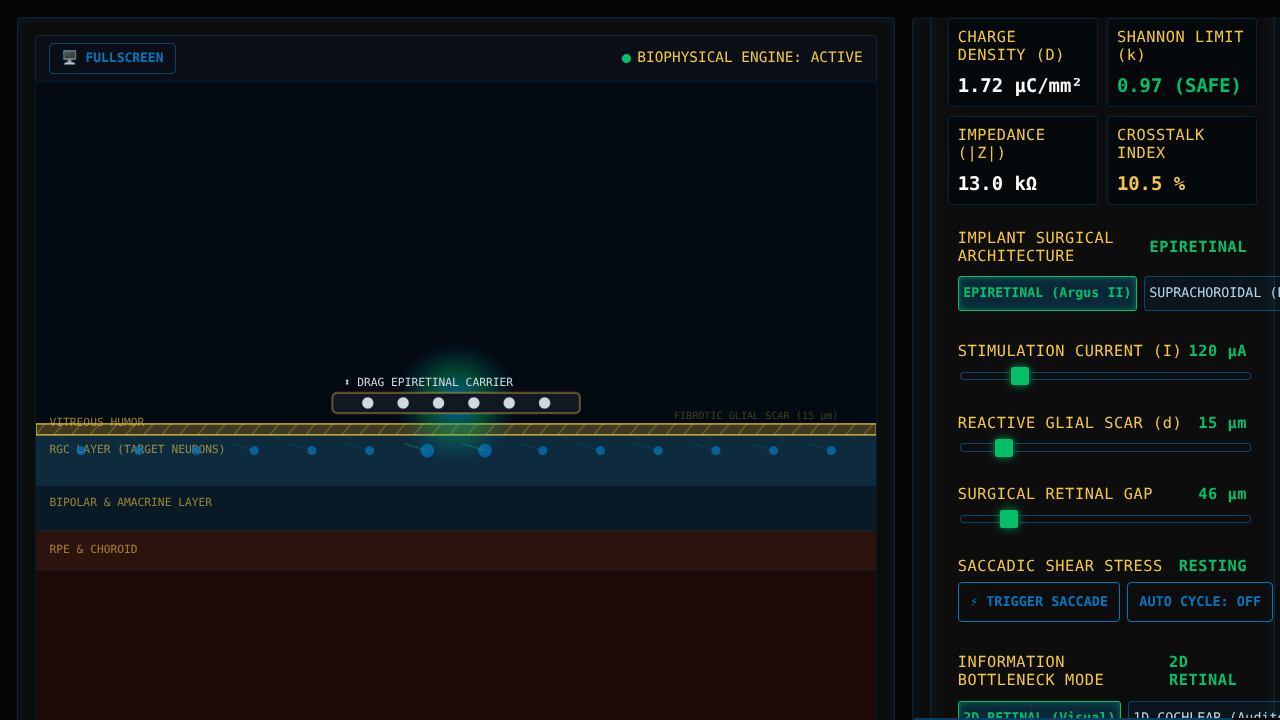

How to Operate the Simulator
- Array Architecture Selector: Toggle between Epiretinal (implanted inside the vitreous against RGCs, high risk of retinal detachment) and Suprachoroidal (implanted behind the vascular choroid, safer surgery but greater separation distance from neurons).
- Stimulation Current ($I$): Adjust current amplitude from $10\ \mu\text{A}$ to $600\ \mu\text{A}$. Observe the real-time electric field heatmap. Note how excessive current breaches the red Shannon safety line ($k > 1.85$).
- Reactive Glial Scar ($d$): Simulate months of chronic implantation. As the fibrotic capsule thickens, interfacial impedance $|Z|$ rises and field penetration drops, requiring more current and causing massive current overlap.
- Trigger Saccade: Induce a rapid mechanical shear jerk. Watch the mechanical stress vectors pull against the retinal layers, causing micro-trauma spikes.
- Information Bottleneck Mode: Switch to the 1D Cochlear view to compare how 22 electrodes perfectly match the acoustic tonotopic spectrum versus the catastrophic spatial bleeding in the 2D visual grid.
- Interactive Canvas: Click and drag the electrode array puck directly on the canvas to evaluate geometric lift-off and vertical coupling efficiency.
