Monte Carlo Light Transport in Biomedical Engineering
In the realm of biophotonics and medical physics, analytical solutions to the Radiative Transport Equation (RTE) are notoriously difficult to derive for geometrically complex, heterogeneous, and highly scattering biological tissues. The Monte Carlo method for multi-layered tissues (often abbreviated as MCML) serves as the absolute gold standard for numerically solving the RTE. By treating light propagation not as continuous electromagnetic waves, but as massive ensembles of discrete energy packets (photons), we can track exact stochastic trajectories governed by fundamental biophysical parameters.
This digital laboratory simulates the microscopic voyage of photon packets emitted by a configurable laser or LED source into biological media. Each packet initiates with an initial statistical weight $W = 1.0$. As it steps through the computational voxel space, distance intervals are sampled from a probability distribution heavily dependent on the total interaction coefficient $\mu_t = \mu_a + \mu_s$, where $\mu_a$ is the absorption coefficient and $\mu_s$ is the scattering coefficient. The random step size is computed rigorously using $s = -\frac{\ln(\xi)}{\mu_t}$, where $\xi$ represents a uniformly distributed random variable $\xi \in (0,1]$.
Operational Guidelines & User Instructions

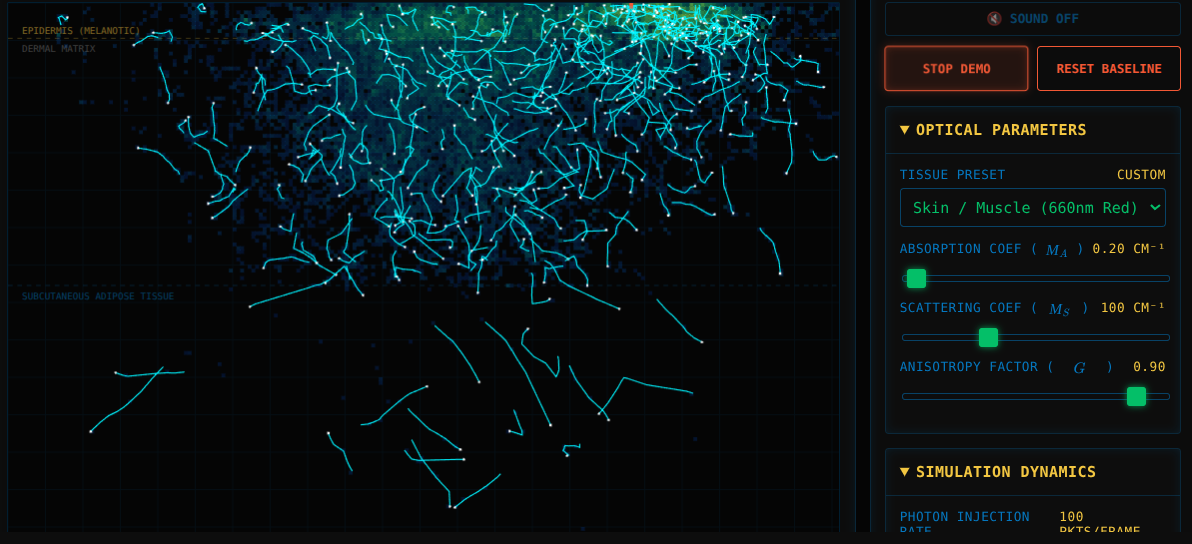

To utilize the interactive workspace, direct your attention to the optical parameter matrix located in the primary HUD. The canvas acts as a 2D depth profile (a slice of tissue) where light is injected from the upper boundary.
- Interactive Beam Positioning: Click, tap, or drag horizontally across the black oscilloscope canvas to instantly move the injection position of the photon beam. This simulates moving a near-infrared sensor or surgical laser across the dermal surface.
- Preset Selection: Use the dropdown menu to instantly apply validated physical parameters. Selecting "Dense Tumor (High Scatter)" rapidly increases $\mu_s$, demonstrating how light diffuses quickly near the surface, limiting deep optical penetration.
- Adjusting Anisotropy ($g$): The $g$ slider modifies the directional probability of scattering. A value near $0.0$ yields isotropic (perfectly random) scattering, while physiological tissue is highly forward-scattering ($g \approx 0.90$), allowing deeper forward penetration before diffuse reflection occurs.
- Photon Injection Rate: Governs the computational load. If running on a modern CPU, sliding this to maximum illustrates rapid statistical convergence of the absorption fluence heatmap. On mobile devices, lower values preserve battery and sustain 60 FPS.
- Start Demo Mode: Initiates an automated diagnostic sequence, sweeping the beam across the tissue surface while cyclically altering the absorption profile to demonstrate real-world sensor scanning (like pulse oximetry or fNIRS). Manual interaction instantly terminates the sequence.
Technical Architectural Breakdown & Physics Implementation
The backend engine of this simulator heavily relies on continuous-time Markov principles transposed into discrete 2D spatial tracking. When a photon scatters, the deflection angle $\theta$ is sampled from the Henyey-Greenstein phase function. In our real-time JavaScript engine, this is calculated securely utilizing the equation:
$$ \cos(\theta) = \frac{1}{2g} \left[ 1 + g^2 - \left( \frac{1-g^2}{1 - g + 2g\xi} \right)^2 \right] $$
for $g \neq 0$. If $g = 0$, the angle is simply $\cos(\theta) = 2\xi - 1$.
Furthermore, the engine implements strict energy conservation using the classic "Russian Roulette" algorithm. When a photon's weight drops below a critical threshold (e.g., $W_{th} < 0.001$), it no longer deposits significant energy. Tracking it becomes computationally wasteful. Thus, the engine gives the packet a 1-in-$m$ chance (typically $m=10$) of surviving with a boosted weight $W = m \cdot W$, or otherwise terminating entirely. This maintains mathematical rigor without bogging down the Javascript event loop. High-DPI scalar arrays (`window.devicePixelRatio`) are implemented for the canvas grid to ensure structural mapping remains crisp across mobile OLED screens without triggering cumulative layout shifts (CLS).
Future Directions & Clinical Integrations
Future extensions of this framework will introduce time-resolved (Time-of-Flight) spectroscopy. By tracking the exact picosecond duration each photon spends traversing the medium, we can simulate modern Time-Domain functional Near-Infrared Spectroscopy (TD-fNIRS) utilized in non-invasive brain-computer interfaces. Additionally, transitioning the 2D grid matrix into a 3D WebGL volumetric texture map will allow for complex, patient-specific MRI voxel meshes to be imported. This will enable clinicians to overlay synthetic radiation dose distributions or photodynamic therapy models directly atop heterogeneous patient anatomy.
