Neuralink Critical Audit: The Illusion of High-Bandwidth BCI
The commercial Brain-Computer Interface (BCI) paradigm championed by Neuralink (utilizing the N1 implant and robotic microsurgery) promises unprecedented neurological integration. By distributing 1,024 micro-electrodes across 64 ultra-thin polyimide "threads" into the motor cortex (M1), the system theoretically accesses vast neural topologies. However, a rigorous biophysical and clinical audit reveals stark contradictions between the public demonstrations of smooth cursor control and the underlying physical degradation of the implant interface.
1. The Retraction Crisis: Mechanical Mismatch ($E_{\text{poly}} \gg E_{\text{brain}}$)
The human brain is a viscoelastic organ floating in cerebrospinal fluid (CSF). It is constantly subjected to displacement. Pulsatile cardiac rhythms induce micro-shifts ($30 \text{ to } 100\ \mu\text{m}$), while postural changes (standing, lying down) or valsalva maneuvers can cause macro-displacements exceeding $1.5 \text{ to } 3.0\ \text{mm}$.
Neuralink anchors a rigid titanium canister flush into the skull bone, while deploying flexible polyimide threads into the soft cortical parenchyma. Although polyimide is flexible, its elastic modulus ($E \approx 3\ \text{GPa}$) is significantly higher than that of brain tissue ($E \approx 1\ \text{kPa}$). When the brain shifts relative to the skull, longitudinal shear stress develops along the length of the thread:
$$\tau_{\text{shear}} = \frac{E_{\text{thread}} \cdot A_{\text{thread}}}{L} \cdot \Delta z(t) - F_{\text{frictional-tissue}}$$

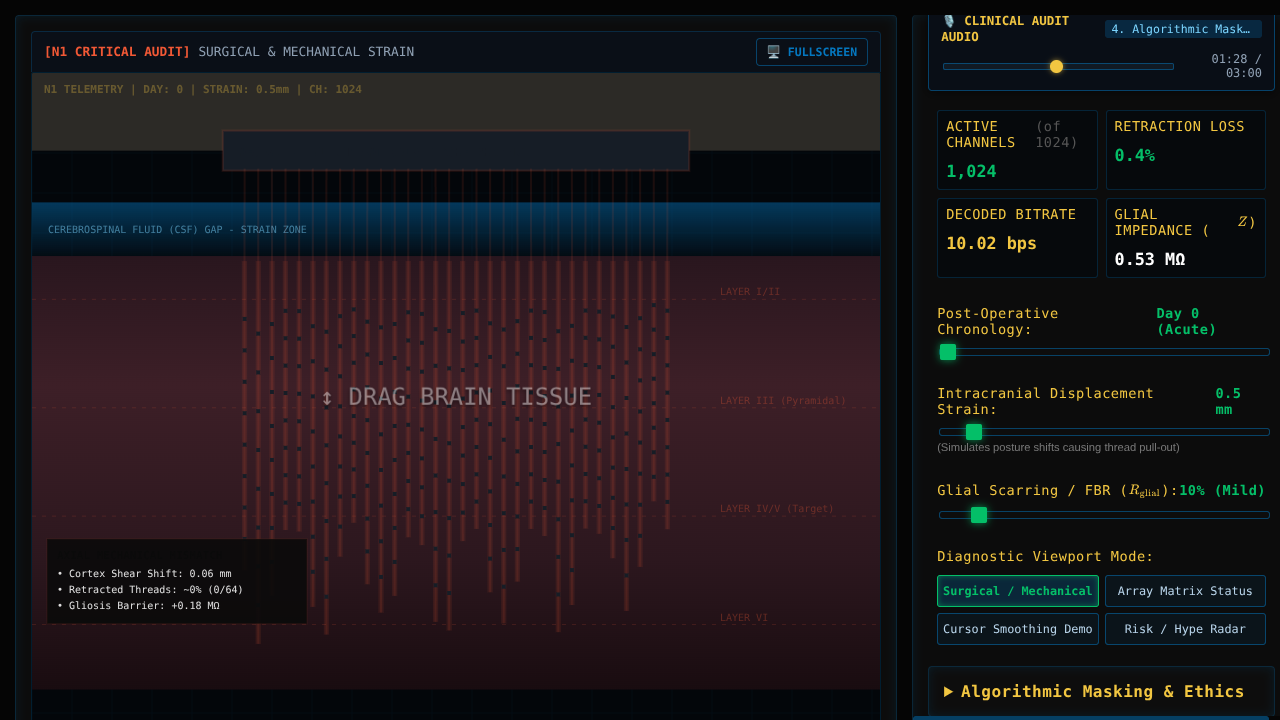

In the first human trial (Patient P1, early 2024), this mechanical shear led to a catastrophic failure known as thread retraction. Up to 85% of the electrode threads pulled out of the functional cortical layers into the subdural space, plunging the active channel count from 1,024 to under 150. In our simulation's Surgical / Mechanical view, you can actively drag the brain tissue downward to simulate this postural sag and observe the threads permanently yielding and retracting.
2. The Foreign Body Response (FBR) & Impedance ($Z$) Decay
Penetrating the blood-brain barrier (BBB) triggers an inevitable neuroinflammatory cascade. Microglia and reactive astrocytes encapsulate the foreign threads. Over chronic timescales ($t > 30\ \text{days}$), a dense glial scar forms. This bio-interface can be modeled using an expanded Randles equivalent circuit:
$$Z(\omega) = R_{\text{electrolyte}} + \frac{R_{\text{ct}} + Z_{\text{Warburg}}}{1 + j \omega C_{\text{dl}} (R_{\text{ct}} + Z_{\text{Warburg}})} + R_{\text{glial}}(\rho_{\text{scar}}, d_{\text{scar}})$$
As the glial sheath thickens ($d_{\text{scar}} \uparrow$), the local tissue resistance ($R_{\text{glial}}$) escalates dramatically, often rising from baseline $\sim 300\ \text{k}\Omega$ to over $2\ \text{M}\Omega$. High-frequency single-unit action potentials ($1\ \text{kHz} - 3\ \text{kHz}$) are severely attenuated by this capacitive barrier. The resulting Signal-to-Noise Ratio (SNR) decays exponentially:
$$\text{SNR}(t) = \text{SNR}_0 \cdot e^{-\alpha \cdot d_{\text{scar}}(t)}$$
When SNR falls below a threshold ($<3.5\sigma$), the system can no longer reliably execute spike-sorting, devastating the raw informational bandwidth.
3. Algorithmic Masking & The Placebo Cursor
To salvage the collapsed channel count and maintain public perception, Neuralink shifted decoding strategies from discrete single-unit activity to broad multi-unit "hash" fields. To mask the resulting jitter and noise, heavy algorithmic smoothing (e.g., Kalman and Wiener filters) was applied.
In the Cursor Smoothing Demo viewport, you can experience this directly. Drag the blue "Target" intent. Notice how the red "Raw Decode" cursor jitters uncontrollably as channels drop. By increasing the Software Smoothing slider, the green public-facing cursor appears fluid, but it incurs a massive latency penalty and often relies on predictive UI snapping rather than raw neural intent. This induces high cognitive fatigue in the patient, who must exert intense mental visualization just to overcome the software's inertial dampening.
4. Bioethical Regulatory Violations: Therapeutic Misconception
Perhaps the most severe critique of the Neuralink project is ethical. Executives frequently blur the lines between early-phase feasibility trials and miraculous therapeutic cures (e.g., promising to "cure blindness" or "enable telepathy"). This creates profound Therapeutic Misconception in vulnerable patient populations (like those with severe cervical spinal cord injuries).
When assessing the Risk / Hype Radar, compare the invasive risks—craniotomy hemorrhage, meningitis, and the immense danger of explanting integrated threads—against established non-invasive technologies. Advanced eye-tracking (like Tobii) or minimally invasive endovascular approaches (like the Synchron Stentrode) often provide superior, stable communication bitrates (15-30 WPM) without the need to drill into the skull or permanently scar the motor cortex.
