Clinical Neurobiology, AAC Mathematical Information Rates & Somatosensory Carer Co-Regulation
Augmentative and Alternative Communication (AAC) systems bridge critical neuro-expressive pathways for pediatric and adult individuals facing motor speech disorders (dysarthria, apraxia of speech), neurological trauma (expressive aphasia following middle cerebral artery infarction), neurodevelopmental diversity (autism spectrum conditions, non-speaking states), and neuromuscular motor loss (amyotrophic lateral sclerosis, cerebral palsy). The NeuroComm AAC & Somatosensory Carer Interface translates multi-modal intention into speech motor synthesis through high-salience communicative matrices, anatomical sensory mapping, and variable assistive access layers.
1. Communication Bandwidth, Fitts's Law & Motor Planning
Direct access AAC selection speed obeys the Shannon formulation of Fitts's Law, describing human motor selection duration as a function of target distance ($D$) and effective target width ($W$). The Index of Difficulty ($ID$) and mean movement time ($MT$) are modeled as:
$$ID = \log_2\left(\frac{2D}{W}\right) \quad \text{[bits]}$$
$$MT = a + b \cdot ID = a + b \log_2\left(\frac{2D}{W}\right)$$
For non-verbal individuals with cerebellar ataxia, spastic quadriparesis, or choreoathetoid movements, the empirical motor coefficient $b$ expands significantly, rendering micro-targets inaccessible. NeuroComm counteracts target degradation by enforcing the Fitzgerald Color-Coding Key (verbs in emerald green, nouns in salience orange, descriptors in marine blue, social cues in magenta, and primary physiological needs in high-contrast vermilion). This spatial motor consistency enables motor planning automation, allowing the user's motor cortex to encode ballistic movement trajectories rather than relying solely on visual search latency.
2. Assistive Scanning Latency & Information Transfer Rate (ITR)
When direct motor access is unattainable, assistive switch scanning enables communication through temporal sequence actuation. In linear row-column scanning, if $R$ represents the target row index, $C$ represents the column index, and $\tau_{\text{step}}$ denotes the scanning dwell or interval step, the total selection latency $T_{\text{select}}$ is governed by:
$$T_{\text{select}} = (R \cdot \tau_{\text{step}}) + (C \cdot \tau_{\text{step}}) + 2\tau_{\text{switch}}$$
The overall communication channel information transfer rate $B_{\text{ITR}}$ in bits per second (bps) or words per minute (wpm) follows the Shannon-Nyquist theorem adjusted for communicative error probability $P_e$ across an alphabet or symbol library of size $M$:
$$B_{\text{ITR}} = \frac{1}{T} \left[ \log_2 M + (1 - P_e)\log_2(1 - P_e) + P_e \log_2\left(\frac{P_e}{M - 1}\right) \right]$$
By dynamically optimizing the scan interval ($\tau_{\text{step}}$ selectable from 0.4 s to 2.5 s) and integrating gaze-contingent dwell detection with radial visual progress confirmation, NeuroComm minimizes selection errors ($P_e \to 0$), substantially augmenting the information rate per unit time.
3. Somatosensory Pain Localization & Autonomic Co-Regulation
Traditional verbal pain scoring fails for non-verbal individuals, routinely precipitating clinical misdiagnoses of somatic distress as behavioral agitation. NeuroComm implements a digitized, bi-directional Somatosensory Body Map coupled with the Wong-Baker FACES pain rating scale:
$$S_{\text{distress}} = \Phi_{\text{intensity}} \times \mu_{\text{region}} \quad \text{where } \Phi \in [0, 10]$$
Selecting anatomical zones (cephalic, thoracic, abdominal, epigastric, or peripheral appendicular) correlates directly with visceral and somatic nociceptive projections. Acoustic alert chimes are generated via pure harmonic sinusoidal carriers ($f_0 = 528\text{ Hz}$ or alert dyad $f_1 = 880\text{ Hz}, f_2 = 1174.66\text{ Hz}$) that immediately inform the caregiver while dampening autonomic stress responses through soothing acoustic envelope decays.

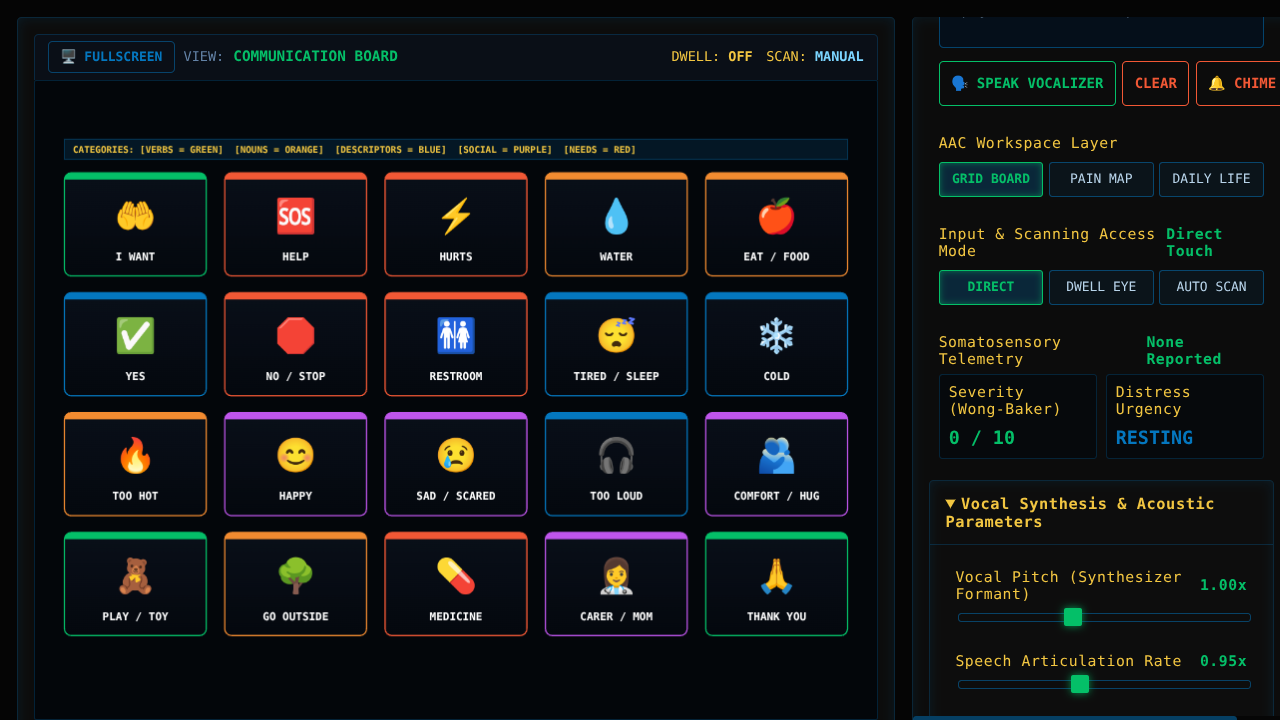

Operational Guide: Interactivity, Gestures & Sonification
- Direct Tile Selection: Click or touch any symbol tile on the canvas. The engine constructs the message in the Message Ribbon, triggers a haptic harmonic chime, and provides immediate vocal previewing.
- Eye-Gaze / Dwell Access Mode: Toggle "DWELL EYE". Hover over any canvas card or body hotspot. An animated radial dwell ring tracks temporal progression until auto-selection triggers at the specified threshold.
- Assistive Switch Auto-Scanning: Toggle "AUTO SCAN". A luminous gold bounding box cycles rhythmically through rows and columns. Tap the "ACTUATE SWITCH" button or hit the physical Space key to lock row and select item.
- Interactive Pain Mapping: Switch to "PAIN MAP" view. Click or drag directly on the human anatomical silhouette (Head, Chest, Stomach, Arms, Legs) to pinpoint somatic distress and assign clinical intensity.
- Message Vocalizer: Click "SPEAK VOCALIZER" to trigger the Web Speech synthesis engine with customizable formant pitch and speech articulation speed.
