1. Biophysical Principles of Optogenetics and Light-Gated Ion Channels
Optogenetics combines genetic engineering with optical physics to achieve millisecond-timescale, cell-type-specific control of excitable membranes. Unlike pharmacological agents that wash in over minutes and lack cellular selectivity, light-activated microbial rhodopsins can be turned on and off synchronously with neural action potentials. Discovered in unicellular green algae (such as Chlamydomonas reinhardtii) and halophilic archaea (Halobacterium salinarum), these seven-transmembrane $\alpha$-helical opsins harbor a covalently attached chromophore, all-trans-retinal, linked via a protonated Schiff base to an invariant lysine residue on helix seven ($TM7$).
Upon absorbing a photon of appropriate wavelength, the retinal chromophore undergoes ultrafast ($<200\text{ fs}$) photochemical isomerization from all-trans to 13-cis. This triggers steric rearrangements through helices $TM3$, $TM6$, and $TM7$, transiently creating an aqueous pathway across the otherwise impermeable phospholipid bilayer. Depending on the pore architecture and ion selectivity filters, microbial opsins operate as either passively conducting ion channels (e.g., Channelrhodopsin-2, Chrimson) or active electrogenic ion pumps driven by photon energy (e.g., Halorhodopsin, Archaerhodopsin-3).
2. Mathematical Formulations & Multi-State Photocycle Kinetics
To accurately reproduce both the fast transient peak current and the desensitized steady-state plateau observed during continuous patch-clamp recordings, Channelrhodopsin-2 is mathematically formulated via a 4-State Markov Model:
$$C_1 \underset{G_{d1}}{\overset{K_1(I_L)}{\rightleftharpoons}} O_1 \underset{e_{21}}{\overset{e_{12}}{\rightleftharpoons}} O_2 \underset{K_2(I_L)}{\overset{G_{d2}}{\rightleftharpoons}} C_2 \underset{r}{\rightarrow} C_1$$
Here, $C_1$ represents the dark-adapted, fully recovered ground state; $O_1$ is the high-conductance open state responsible for initial peak photocurrent; $O_2$ is the sub-conductance open state; and $C_2$ is the desensitized closed state. The light-dependent activation transition rates $K_1(I_L)$ and $K_2(I_L)$ are functions of the optical irradiance $I_L$ ($\text{mW/mm}^2$), the effective photon absorption cross-section $\epsilon(\lambda)$, and the quantum yield $\phi$:
$$K_1(t) = \epsilon_1(\lambda) \cdot \frac{I_L(t) \cdot \lambda}{h \cdot c} \cdot p(t), \quad K_2(t) = \epsilon_2(\lambda) \cdot \frac{I_L(t) \cdot \lambda}{h \cdot c} \cdot p(t)$$
The time-evolution of the state probability vector $\mathbf{P} = [C_1, O_1, O_2, C_2]^T$ follows the master system of coupled ordinary differential equations:
$$\frac{dC_1}{dt} = G_{d1} O_1 + r C_2 - K_1(t) C_1$$
$$\frac{dO_1}{dt} = K_1(t) C_1 - (G_{d1} + e_{12}) O_1 + e_{21} O_2$$
$$\frac{dO_2}{dt} = e_{12} O_1 + K_2(t) C_2 - (G_{d2} + e_{21}) O_2$$
$$\frac{dC_2}{dt} = G_{d2} O_2 - (K_2(t) + r) C_2$$
Subject to conservation of total receptor mass: $C_1(t) + O_1(t) + O_2(t) + C_2(t) = 1.0$.
3. Coupling Light-Gated Photocurrent to Hodgkin-Huxley Membrane Dynamics
The macroscopic opsin photocurrent $I_{\text{opsin}}(V, t)$ entering the neuron soma is expressed as:
$$I_{\text{opsin}}(V, t) = g_{\text{opsin}} \cdot G(V) \cdot \big[O_1(t) + \gamma O_2(t)\big] \cdot (V - E_{\text{opsin}})$$
where $g_{\text{opsin}}$ is the maximal unitary conductance per unit membrane area, $\gamma \approx 0.10$ is the conductance ratio of $O_2$ relative to $O_1$, and $G(V)$ is an empirical non-linear voltage-rectification function capturing inward rectification:
$$G(V) = \frac{1 - \exp\left(-\frac{V - V_0}{v_1}\right)}{1 + \exp\left(\frac{V - V_0}{v_2}\right)}$$
This photocurrent is integrated directly into the classical Hodgkin-Huxley membrane charge balance:
$$C_m \frac{dV}{dt} = - \bar{g}_{\text{Na}} m^3 h (V - E_{\text{Na}}) - \bar{g}_{\text{K}} n^4 (V - E_{\text{K}}) - g_L (V - E_L) - I_{\text{opsin}} + I_{\text{inj}}$$
For cation-permeable ChR2 ($E_{\text{ChR2}} \approx 0\text{ mV}$), optical stimulation yields a large inward depolarizing current that rapidly drives $V$ above the action potential threshold ($\sim -55\text{ mV}$), initiating precise all-or-none spike trains. In contrast, for chloride-pumping NpHR or proton-extruding Arch, light activation produces electrogenic hyperpolarizing currents ($I_{\text{pump}} < 0$) that clamp $V_m$ far below firing threshold (down to $-80\text{ mV}$ or $-90\text{ mV}$), instantly silencing spontaneous and synaptic firing.
4. Photon Propagation in Scattering Brain Tissue
Light delivery through stereotaxically implanted optical cannulas is governed by tissue absorption and Mie-type forward scattering. According to the modified Kubelka-Munk and diffuse scattering approximation, light irradiance decays as a function of depth $z$ and radial distance $r$ from the optical fiber face (radius $\rho$, numerical aperture $NA$):
$$I(z, r) \approx I_0 \cdot \frac{\rho^2}{(z + z_0)^2 + r^2} \cdot \exp(-\mu_{\text{eff}} z)$$
where $\mu_{\text{eff}} = \sqrt{3 \mu_a (\mu_a + \mu'_s)}$ is the effective attenuation coefficient. Because reduced scattering $\mu'_s(\lambda)$ drops steeply with increasing wavelength according to $\mu'_s \propto \lambda^{-b}$ ($b \approx 1.4$ in cortical grey matter), red-shifted opsins like Chrimson ($\lambda \approx 590\text{ nm}$) experience dramatically less photon scattering than blue-activated ChR2 ($\lambda \approx 470\text{ nm}$), enabling deeper tissue penetration and dual-color multiplexed circuit dissection.

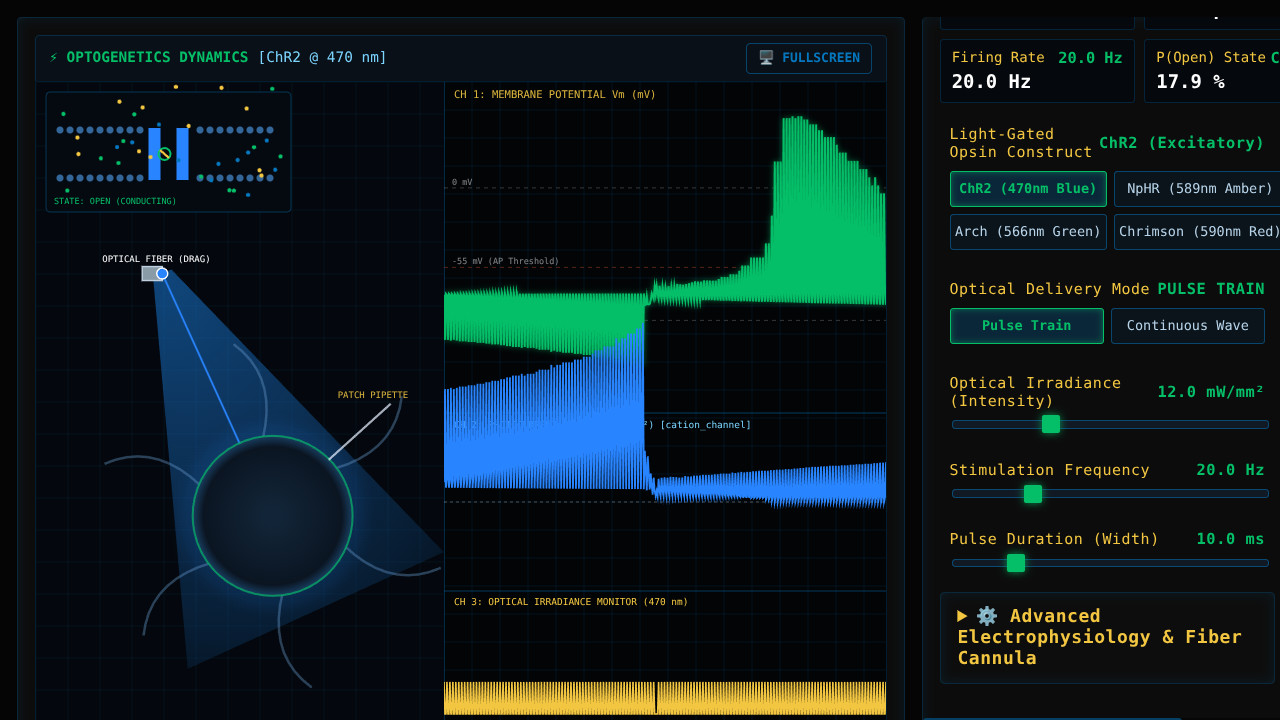

5. How to Use this Interactive Laboratory
- Direct Canvas Manipulation: Click and drag the glowing Optical Fiber Cannula across the cellular arena. Watch the live beam cone illuminate the cell soma; irradiance decreases dynamically with distance according to 3D scattering formulas.
- Opsin Construct Switching: Toggle between excitatory cation channels (ChR2, Chrimson) and inhibitory hyperpolarizing pumps (NpHR, Arch) to observe instantaneous reversal from action potential generation to optical silencing.
- Optical Delivery Parameters: Adjust optical irradiance ($\text{mW/mm}^2$), pulse train repetition frequency ($1\text{ to }80\text{ Hz}$), and pulse width ($1\text{ to }50\text{ ms}$) to evaluate high-frequency spike fidelity and depolarization block.
- Synchronized Audio Guide: Click START DEMO or scrub the audio deck to take an automated, narrated tour of baseline resting mechanics, desensitization kinetics, optical silencing, and deep-tissue scattering multiplexing.
