1. Historical & Conceptual Foundations: The Operant Conditioning Chamber
The operant conditioning chamber—colloquially designated the "Skinner Box"—was conceptualized and engineered by American psychologist B.F. Skinner in 1930 to systematically examine voluntary, emitted motor behaviors under rigorously controlled laboratory isolation. Departing decisively from Ivan Pavlov’s classical conditioning paradigm (wherein a conditioned reflex is elicited through strict temporal pairing with an involuntary unconditioned stimulus), Skinner demonstrated that an organism's rate of response is modulated directly by the consequences that immediately follow the act. This empirical relationship established the cornerstone of experimental operant analysis and Edward Thorndike's revised Law of Effect: an operant response $R$ occurring in the presence of a discriminative stimulus $S^D$ that produces reinforcement $S^R$ exhibits an elevated future probability of emission, whereas unreinforced or penalized responses undergo extinction or suppression.
Inside the modular apparatus, the experimental subject (typically a laboratory rodent, Rattus norvegicus, or avian subject like Columba livia) interacts with an explicit operandum—most commonly a microswitch-actuated stainless steel response lever or pecking disk. The physical environment isolates extraneous variables via acoustic dampening, standardized ambient illumination, automated fluid or food pellet dispensers, acoustic signal transducers, visual cue lamps, and an electrified parallel steel rod floor connected to an isolated shock generator. Skinner's critical methodological breakthrough was the abandonment of discrete maze trials in favor of free-operant rate tracking: the subject remains unconstrained inside the workspace for extended durations, allowing the spontaneous frequency of lever depressions per unit time to serve as the pure dependent metric of behavioral strength and motivational state.
2. Schedules of Reinforcement & Mechanical Cumulative Recorders
The velocity, temporal architecture, and extinction resistance of operant responding are dictated by specific algorithms governing reinforcer delivery, which Skinner and Charles Ferster formalized across thousands of experimental hours. These schedules of reinforcement fall broadly into ratio categories (dependent on the count of emitted responses) and interval categories (dependent on the passage of time preceding a response opportunity):
- Continuous Reinforcement (CRF / FR-1): Every valid lever press produces a single food pellet reinforcer. Extinction resistance is low, but the initial rate of behavioral acquisition is maximal. This establishes the fundamental behavioral baseline.
- Fixed Ratio (FR-$n$): Reinforcement is delivered strictly upon completion of $n$ discrete responses. It is characterized by high, uniform response rates punctuated by brief "post-reinforcement pauses" (PRP) directly proportional to the magnitude of the ratio requirement (e.g., an FR-50 schedule induces a longer pause than an FR-10). The subject essentially performs a mental cost-benefit calculation before embarking on the next physical climb up the "ratio mountain."
- Variable Ratio (VR-$n$): Reinforcement occurs around an unpredictable average of $n$ responses. This produces exceptionally steep, uninterrupted linear response curves impervious to pauses, directly mimicking the resilient behavioral traps generated by commercial slot machines and randomized loot boxes in digital environments.
- Fixed Interval (FI-$t$): The first response following the expiration of an elapsed duration $t$ is reinforced. This yields the renowned "FI Scallop": immediately following reinforcement delivery, the subject pauses significantly, followed by a monotonic accelerated burst of responses as the terminal duration draws near, reflecting internal circadian and temporal timing estimations within the basal ganglia.
- Variable Interval (VI-$t$): Reinforcement is available after unpredictable time periods averaging $t$. This generates remarkably constant, moderate, fatigue-resistant response rates frequently utilized as highly sensitive baselines for psychoactive pharmacological assays and behavioral toxicology.
- Extinction (EXT): Delivery of reinforcement ceases completely. Response rates initially demonstrate a chaotic "extinction burst" marked by behavioral variability, frustration-induced aggression, and anomalous lever strikes before decaying exponentially toward the pre-training operant baseline.
To capture these dynamic kinetics continuously without human observation bias, Skinner invented the Gerbrands mechanical cumulative recorder. In this instrument, a continuous paper strip unspools at a constant horizontal linear velocity. A mechanical inking pen translates across the paper perpendicularly, stepping upward by an infinitesimal discrete distance $\Delta y$ with each microswitch lever activation. When reinforcement triggers, the pen briefly deflects downward to create a distinctive event pip. When the pen reaches the upper lateral boundary of the scroll, it resets abruptly to the baseline margin in a rapid return sweep. The slope of the resulting trace mathematically represents the first derivative of cumulative responses with respect to time ($\frac{dy}{dt}$), directly visualizing the instantaneous response rate and internal motivation of the subject in real-time.
3. Signal Detection Theory (SDT), Psychophysics & Operant Decision Models
Modern behavioral neuroscience frequently interfaces the Skinner box with Green and Swets' Signal Detection Theory (SDT) to cleanly decouple fundamental sensory sensitivity from motivational response bias in non-human subjects. In a typical operant psychophysical task (like a Go/No-Go procedure), the chamber presents discrete trials consisting of background Sensory Noise alone ($N$) or a Target Signal superimposed on that Noise ($S+N$). These cues manifest as subtle acoustic frequency modulations, decibel shifts, or luminance variations on the $S^D$ cue lamps.
Under these strict contingencies, the internal sensory evidence variable $x$ sampled by the rodent's nervous system is assumed to conform to normal Gaussian distributions across repeated physiological presentations:
$$f(x \mid N) = \frac{1}{\sqrt{2\pi}\sigma} \exp\left(-\frac{x^2}{2\sigma^2}\right)$$
$$f(x \mid S+N) = \frac{1}{\sqrt{2\pi}\sigma} \exp\left(-\frac{(x - \mu_s)^2}{2\sigma^2}\right)$$
Assuming standardized unit variance ($\sigma = 1$), the fundamental physiological sensory discriminability index $d'$ (d-prime) quantifies the standardized mathematical distance between the noise and signal-plus-noise distribution peaks. It represents pure, uncorrupted sensory capacity (e.g., the physical bandwidth of the auditory nerve):
$$d' = \frac{\mu_{S+N} - \mu_N}{\sigma} = Z(\text{Hit Rate}) - Z(\text{False Alarm Rate})$$
where $Z(p) = \Phi^{-1}(p)$ represents the inverse cumulative standard normal distribution function (the probit function). Simultaneously, the subject establishes an internal, strictly psychological decision criterion threshold $c$, determining whether the sampled internal sensory evidence warrants an energetic motor response ("Go") or a conservative non-response ("No-Go"):
$$c = -\frac{1}{2}\left[Z(\text{Hit Rate}) + Z(\text{False Alarm Rate})\right]$$
$$\beta = \frac{f(x_c \mid S+N)}{f(x_c \mid N)} = \exp\left(c \cdot d'\right)$$
Crucially, an animal subjected to prolonged food deprivation ($D$, high caloric motivation) or operating under high incentive payoff density displays a liberal bias ($c < 0$, $\beta < 1$), yielding exceptionally high Hit rates inevitably accompanied by elevated False Alarm rates. Conversely, satiated animals or shock-punished subjects adopt a conservative criterion ($c > 0$, $\beta > 1$), successfully suppressing False Alarms to near-zero levels but at the severe functional cost of elevated Miss rates. The dynamic receiver operating characteristic (ROC) curve models the theoretical locus of all possible $(FA, Hit)$ coordinate pairs achievable under an invariant sensory capacity:
$$\text{ROC}(x) = \Phi\left(\Phi^{-1}(x) + d'\right)$$
4. Neurocomputational Architecture & Rescorla-Wagner Learning Kinetics

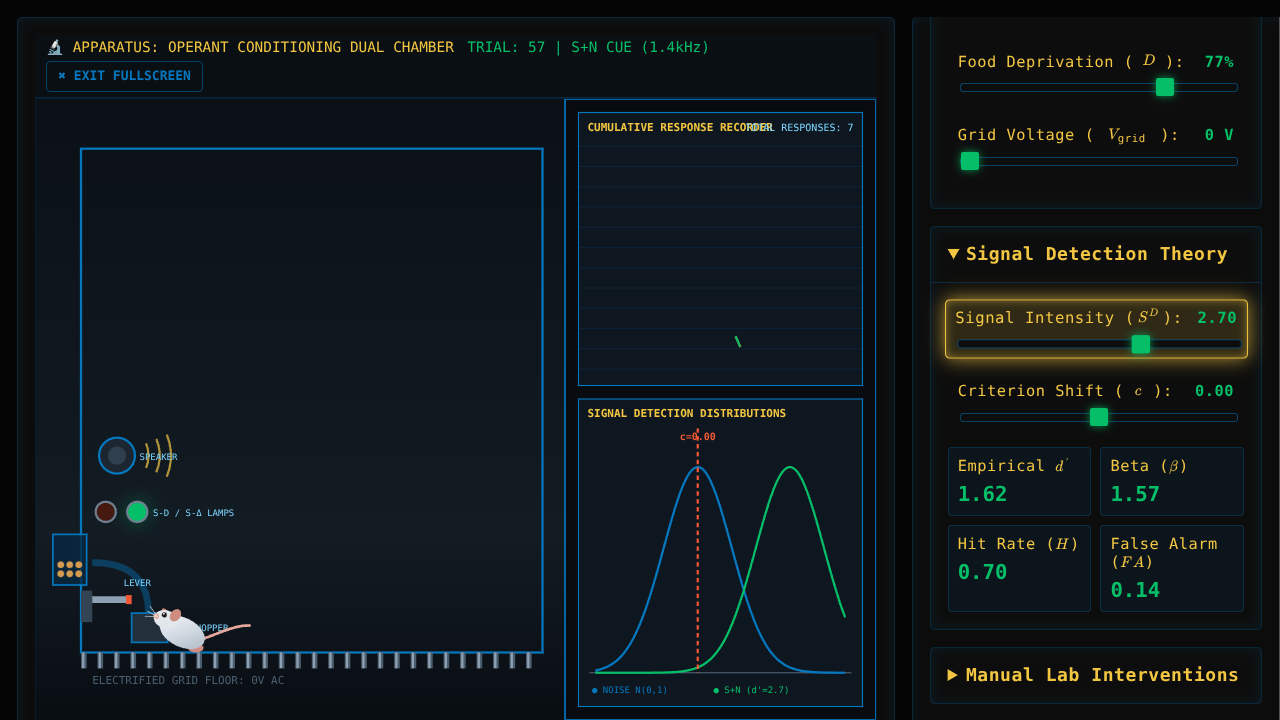

Within the core software engine driving this laboratory simulation, the autonomous digital rodent agent's associative lever preference $V$ and real-time behavioral state transitions are computed continuously. This is achieved using Rescorla-Wagner reinforcement learning updates calculated precisely at the moment of reinforcer delivery:
$$\Delta V = \alpha_{\text{CS}} \cdot \beta_{\text{US}} \cdot (\lambda - V)$$
where $\alpha_{\text{CS}}$ denotes the conditioned stimulus salience (the distinctiveness of the lever or cue light), $\beta_{\text{US}}$ represents unconditioned reinforcer magnitude (the caloric survival value of the sucrose pellet), and $\lambda$ models the asymptotic strength theoretically supported by the primary reinforcer. In modern neurocomputational models of the mammalian basal ganglia, phasic dopamine transients originating in the ventral tegmental area (VTA) and projecting to the nucleus accumbens shell are simulated mathematically via temporal difference reward prediction errors (TD-RPE): $\delta_t = r_t + \gamma V(s_{t+1}) - V(s_t)$.
When unexpected, high-voltage aversive shocks are pulsed through the parallel grid floor, a massive aversive hyperpolarization and basolateral amygdala (BLA) fear circuit trigger activates immediate species-specific defense reactions (SSDRs), such as immobility (freezing) or rapid spatial retreat. If active avoidance contingencies are engaged, the subject learns an instrumental avoidance response (depressing the lever) to preemptively terminate an $S^{\Delta}$ warning stimulus, successfully transitioning from simple classical fear conditioning into complex operant negative reinforcement paradigms.
