THE FORENSIC BIOPHYSICS OF THERANOS: WHY THE EDISON WAS MATHEMATICALLY IMPOSSIBLE
Between 2003 and 2018, Theranos promised to revolutionize clinical diagnostics by running hundreds of automated assays on a single $20\text{--}50\,\mu\text{L}$ capillary blood droplet drawn via a fingerstick ("nanotainer"). Yet, the failure of the proprietary "Edison" and "miniLab" systems was not merely an engineering execution defect or software immaturity; it was fundamentally grounded in insurmountable biophysical laws, fluid dynamics, and statistical stochasticity. When microfluidic channel dimensions drop to microscopic scales and analyte concentrations reach picomolar regimes, biological fluids deviate completely from idealized electronic circuit behaviors.
1. CAPILLARY FINGERSTICK VS. VENIPUNCTURE BIOCHEMISTRY
Standard automated clinical diagnostic machines (such as the Siemens ADVIA 1800, Roche Cobas, or Abbott Architect) utilize venous blood drawn via antecubital venipuncture ($5\text{--}10\,\text{mL}$). Venous blood is a homogenous suspension under laminar vascular transport. Conversely, capillary blood collected from a skin puncture is an inhomogeneous composite of arterial blood, venous blood, capillary loop fragments, intracellular debris, and interstitial fluid (ISF).
When a phlebotomist or patient forcibly squeezes or "milks" a punctured fingertip to generate sufficient droplet volume, interstitial tissue pressure spikes dramatically:
$$C_{\text{measured}} = (1 - f_{\text{ISF}} - f_{\text{debris}}) \cdot C_{\text{plasma}} + f_{\text{ISF}} \cdot C_{\text{ISF}} + f_{\text{lysis}} \cdot C_{\text{intracellular}}$$
Because intracellular potassium concentrations ($[K^+]_{\text{intracellular}} \approx 140\,\text{mmol/L}$) are approximately 35 times greater than extracellular serum concentrations ($[K^+]_{\text{serum}} \approx 3.5\text{--}5.0\,\text{mmol/L}$), the lysis of even $0.4\%$ of local erythrocytes elevates measured potassium to lethal pseudo-hyperkalemic values ($>6.2\,\text{mmol/L}$), triggering false emergency hospital referrals.
2. ERYTHROCYTE MECHANICAL SHEAR & POISEUILLE MICROCHANNEL FLOW
Erythrocytes (red blood cells) are biconcave disks possessing an average diameter of $7.5\text{--}8.5\,\mu\text{m}$ and a membrane shear elastic modulus $E_s \approx 4\text{--}10\,\mu\text{N/m}$. As blood is driven through microfluidic sub-millimeter channels, robotic pipetting needles, or high-velocity micro-valves inside a miniaturized cartridge, it experiences Poiseuille parabolic laminar flow:
$$u(y) = u_{\text{max}} \left[ 1 - \left( \frac{y - y_c}{R} \right)^2 \right], \quad \tau = \eta \cdot \frac{\partial u}{\partial y}$$
Where $\eta$ represents fluid viscosity (typically $3.5\text{--}4.5\,\text{mPa}\cdot\text{s}$ for whole blood) and $\tau$ is hydrodynamic wall shear stress. While the instantaneous rupture threshold is $\tau_{\text{crit}} \approx 150\text{--}400\,\text{Pa}$, prolonged exposure to shear stresses above $10\text{--}25\,\text{Pa}$ inside narrow microfluidic bends induces sublethal membrane pore opening and cell rupture—a phenomenon designated as hemolysis.
Hemolysis releases massive quantities of cell-free oxyhemoglobin into the optical path. According to the Beer-Lambert Law:
$$A(\lambda) = \varepsilon_{\text{target}}(\lambda) \cdot c_{\text{target}} \cdot l + \varepsilon_{\text{Hb}}(\lambda) \cdot c_{\text{Hb}} \cdot l$$
Free oxyhemoglobin exhibits intense molar extinction peaks (the prominent Soret band at $\lambda = 415\,\text{nm}$, and dual Q-bands at $541\,\text{nm}$ and $577\,\text{nm}$). These optical peaks completely obscure spectrophotometric, colorimetric, and enzymatic reactions (e.g., bilirubin, ALT, AST, albumin, and cholesterol assays), producing severe signal distortion and false diagnostic readings.
3. THE DILUTION TRAP & THE POISSON MOLECULAR SAMPLING FLOOR
To disguise the reality that the Edison cartridge could only process a tiny fraction of declared tests, Theranos secretly diluted fingerstick blood up to $1:20$ or $1:50$ with saline buffer to achieve the $200\text{--}500\,\mu\text{L}$ working fluid volumes required to run on commercially purchased Siemens Advia machines. This dilution step proved mathematically catastrophic.
For low-abundance physiological biomarkers, such as Thyroid Stimulating Hormone ($\text{TSH}$, normal range $0.4\text{--}4.0\,\text{mIU/L} \approx 10\text{--}100\,\text{pM}$) or Cardiac Troponin I ($\text{cTnI} \approx 1\text{--}10\,\text{ng/L} \approx 0.04\text{--}0.4\,\text{pM}$), the total number of analyte molecules $N$ contained in a $20\,\mu\text{L}$ capillary aliquot is governed by Avogadro's number $N_A$:
$$N = C \cdot V \cdot N_A$$
For an analyte at $1.0\,\text{pM}$ in $20\,\mu\text{L}$, the absolute number of analyte molecules is:
$$N = (10^{-12}\,\text{mol/L}) \cdot (20 \times 10^{-6}\,\text{L}) \cdot (6.022 \times 10^{23}\,\text{molecules/mol}) \approx 1.2 \times 10^7\,\text{molecules}$$
When diluted $1:50$, the effective concentration in the reaction chamber drops to $0.02\,\text{pM}$ ($20\,\text{fM}$), sinking below the instrument's Limit of Blank ($\text{LoB}$) and Limit of Detection ($\text{LoD}$). Furthermore, discrete molecular counting follows a Poisson probability distribution, establishing an immutable theoretical lower bound on stochastic measurement uncertainty:
$$\sigma_N = \sqrt{N} \implies \text{CV}_{\text{Poisson}} = \frac{\sigma_N}{N} = \frac{1}{\sqrt{N}}$$
When calculating the total analytical error according to clinical laboratory quality standards:
$$\text{TE}_{\text{total}} = |\text{Bias}| + 1.65 \cdot \text{CV}_{\text{total}}, \quad \text{where} \quad \text{CV}_{\text{total}} = \sqrt{\text{CV}_{\text{Poisson}}^2 + D \cdot \text{CV}_{\text{inst}}^2 + \text{CV}_{\text{hemo}}^2}$$
Because CLIA Total Allowable Error limits ($\text{TE}_a$) for clinical assays typically enforce $\text{TE}_a \le 10\%\text{--}15\%$, a diluted fingerstick with $\text{TE} > 35\%$ represents a gross diagnostic failure that generates life-threatening false alarms or fatal missed diagnoses.
4. QUALITY CONTROL INTEGRITY: WESTGARD MULTI-RULES & TRIAL FRAUD
Accredited clinical diagnostic laboratories continuously monitor instrument stability using Levey-Jennings control charts and Westgard multi-rules:
- $1_{3s}$ Rule: A single control observation exceeds $\pm 3\,\text{SD}$ (Random error flag; run rejection).
- $2_{2s}$ Rule: Two consecutive control observations exceed $+2\,\text{SD}$ or $-2\,\text{SD}$ (Systematic error; calibration shift).
- $R_{4s}$ Rule: Range between two controls within a run exceeds $4\,\text{SD}$ (Severe random precision collapse).
- $10_x$ Rule: 10 consecutive control observations fall on one side of the mean (Systematic analytical drift).
During the 2021 federal trial (United States v. Holmes), lab directors and whistleblowers testified that when Theranos machines failed daily quality control checks, staff were instructed to actively delete outlier control data points from the system database until the run falsely appeared compliant.
HOW TO USE THIS SIMULATOR

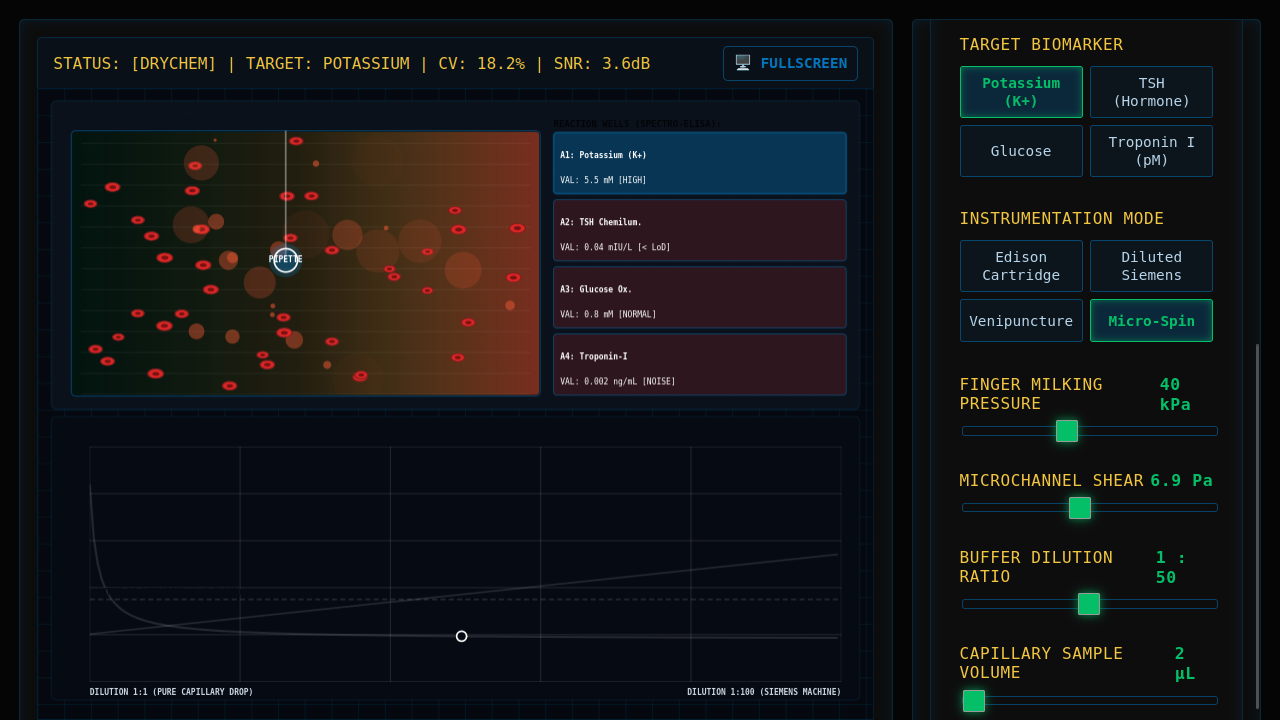

- Direct Canvas Interactivity: Drag the suction pipette puck along the microchannel to inspect localized velocity and shear stress. Click any reaction well (A1–A4) to view real-time absorption.
- Four Lower Diagnostic Views: Use the monitor bar buttons to toggle between the SPECTRUM ($\lambda = 380\text{--}700\,\text{nm}$), DILUTION (LoD floor), QC CHART (30-day Levey-Jennings with Westgard multi-rules), and TUBES (split-screen centrifugation tube comparison).
- Reality Distortion Field (RDF) Slider: Slide from 0% (unforgiving biophysical reality) to 100% ($9B pitch deck bubble) to watch how marketing hype masks physical cell rupture.
- Suppress Outlier Controls Button: Click the trial fraud button to see how deleting failing control points artificially passes CLIA audits.
- Walgreens Patient Lab Slip & Dossier: Inspect authentic Walgreens pathology slips and export the official CMS federal deficiency audit notice.
