Critical Review of Vagus Nerve Stimulation (VNS): Biophysical Mechanics, Selective Recruitment Dilemmas, and Clinical Evidence Synthesis
1. Theoretical Foundations & Biophysical Recruitment Physics
Vagus Nerve Stimulation (VNS) entails electrical excitation of Cranial Nerve X, an intricate neuroanatomical pipeline comprising approximately 80% visceral afferent fibers and 20% efferent parasympathetic preganglionic fibers. In clinical and experimental bioelectronics, activating the vagus trunk is heralded as a universal interface for dampening thalamocortical epileptic synchrony, treating treatment-resistant depression (TRD), and terminating systemic cytokine storms through the cholinergic anti-inflammatory pathway.
However, the fundamental obstacle of all peripheral nerve interfaces—and vagus nerve stimulation in particular—is fiber recruitment selectivity. Axons traversing the cervical vagus are grouped into three classical morphological archetypes with distinct diameters, myelin sheaths, and excitation thresholds governed by the classical Lapicque strength-duration relationship:
$$I_{\text{th}}(PW) = I_{\text{rh}} \cdot \left(1 + \frac{\tau_{\text{ch}}}{PW}\right)$$
Here, $I_{\text{th}}$ represents the threshold current for action potential generation, $I_{\text{rh}}$ is the rheobase current (the minimum asymptotic current required at infinite pulse duration), $\tau_{\text{ch}}$ is the chronaxie time constant, and $PW$ is the rectangular cathodic pulse duration. Because electrical threshold scales inversely with axonal diameter and internal axial conductance, the recruitment hierarchy follows a rigid, non-negotiable sequence:
-
A-Fibers ($A\alpha, A\beta, A\gamma, A\delta$): Large myelinated fibers ($6 \text{ to } 20\,\mu\text{m}$, conduction velocity $v \approx 30 \text{ to } 120\,\text{m/s}$). Chronaxie $\tau_{\text{ch}} \approx 50 \text{ to } 120\,\mu\text{s}$, with rheobase as low as $0.05 \text{ to } 0.2\,\text{mA}$. These fibers mediate somatic sensation and innervate laryngeal muscles via the recurrent laryngeal nerve.
-
B-Fibers: Small myelinated autonomic preganglionic fibers ($1 \text{ to } 3\,\mu\text{m}$, conduction velocity $v \approx 3 \text{ to } 15\,\text{m/s}$). Chronaxie $\tau_{\text{ch}} \approx 150 \text{ to } 300\,\mu\text{s}$, with activation thresholds substantially higher ($0.4 \text{ to } 1.0\,\text{mA}$). They drive thoracic visceral targets, notably cardiac vagal pacemaking tissue.
-
C-Fibers: Unmyelinated visceral afferents ($0.4 \text{ to } 1.2\,\mu\text{m}$, conduction velocity $v \approx 0.5 \text{ to } 2.0\,\text{m/s}$). Chronaxie $\tau_{\text{ch}} \approx 400 \text{ to } 1200\,\mu\text{s}$, requiring substantial charge injection ($1.5 \text{ to } 4.0\,\text{mA}$) to trigger depolarizing sodium channel cascades. Crucially, C-fibers constitute nearly 80% to 90% of all afferent fibers carrying physiological feedback from abdominal organs.
2. The Selective Recruitment Paradox and Off-Target Morbidity
The biophysical reality of extracellular electrical stimulation exposes a profound paradox in clinical vagal therapy: it is impossible to recruit small autonomic B-fibers or visceral unmyelinated C-fibers without first saturating the large somatic A-fibers. Extracellular potential distributions generated by bipolar cuff electrodes obey the volume conductor transfer function:
$$V_e(\mathbf{r}) = \frac{I}{4\pi \sigma} \frac{1}{\|\mathbf{r} - \mathbf{r}_{\text{elec}}\|}$$
Activating an axon requires driving the Rattay activating function $f = \frac{\partial^2 V_e}{\partial x^2}$ past the membrane depolarizing threshold. Because the activating function threshold scales inversely with fiber diameter squared ($I_{\text{th}} \propto 1/d^2$ in classical cable theory), any pulse parameter combination ($I, PW$) adequate to engage metabolic and anti-inflammatory C-fiber afferents will recruit 100% of the somatic motor A-fibers in the recurrent laryngeal branch.
Consequently, clinical dose titration is systematically limited by patient-reported adverse effects: vocal cord adduction spasm, severe hoarseness, persistent cough, dyspnea, and cervical paresthesia. When clinicians dial down current amplitude to mitigate laryngeal spasm, the delivered charge density frequently falls below the threshold needed for central nucleus tractus solitarius (NTS) visceral afferent activation, explaining the pervasive therapeutic variability observed across neurological clinics.
3. Electrochemical Safety Boundaries: The Shannon Model
Sustained charge delivery at helical cuff interfaces introduces hazardous electrochemical side-reactions, including electrode dissolution, platinum corrosion, water electrolysis, and local tissue necrosis. Safety is delineated by the Shannon equation relating charge per phase $Q$ ($\mu\text{C}/\text{phase}$) and charge density $D = Q/A$ ($\mu\text{C}/\text{cm}^2/\text{phase}$):
$$\log(D) = k - \log(Q) \iff k = \log\left(\frac{Q}{A}\right) + \log(Q)$$
In clinical cuff designs (geometric surface area $A \approx 0.04 \text{ to } 0.08\,\text{cm}^2$), the empirical boundary $k = 1.75$ marks the threshold above which irreversible electrochemical platinum dissolution and axonal micro-lesioning emerge. Chronic VNS protocols operating near or above $k = 1.85$ risk epineurial fibrosis, progressive elevation of electrical impedance $Z$, and irreversible loss of myelinated fibers within the targeted trunk.
4. Invasive Cervical (cVNS) vs. Non-Invasive Auricular (taVNS): A Biophysical Critique
Commercial health tech and consumer wellness markets have extensively promoted Transcutaneous Auricular Vagus Nerve Stimulation (taVNS) as a benign, non-invasive surrogate for surgical cuff implantation. The intervention targets the Auricular Branch of the Vagus Nerve (ABVN, Arnold's nerve), whose cutaneous receptive field supplies the cymba conchae and cavity of concha of the external ear.
However, rigorous comparative biophysics reveals profound discrepancies in target engagement:
-
Impedance Attenuation: While an implanted cuff operates directly against wet perineurium with impedance $Z \approx 600 \text{ to } 1200\,\Omega$, dry or gel-coupled auricular skin exhibits impedance $Z_{\text{skin}} \approx 3 \text{ to } 20\,\text{k}\Omega$. As a consequence, over 85% of applied transcutaneous voltage drops across the non-conductive stratum corneum.
-
Current Shunting: High capacitive shunting across dermal tissue layers scatters current vectors laterally, activating local trigeminal ($V_3$) and greater auricular ($C_2/C_3$) sensory afferents rather than penetrating specifically to ABVN axon terminals.
-
Biomarker Verification Failures: True cervical VNS evokes characteristic compound action potential (eCAP) triphasic waveforms, unambiguous slowing of atrioventricular conduction, and pupil dilation cascades via the locus coeruleus noradrenergic projection. In contrast, double-blind sham-controlled fMRI studies of consumer taVNS regularly show that pupil dilation, heart rate variability (HRV) parasympathetic shifts, and NTS Blood-Oxygen-Level-Dependent (BOLD) changes fail to differentiate active cymba conchae stimulation from earlobe sham stimulation when skin-sensation tingling is matched.
5. Clinical Evidence Dissection: Epilepsy, Depression, and Anti-Inflammatory Signaling
The evidence base for VNS exhibits a stark divergence between regulatory history and rigorous clinical efficacy metrics:
-
Refractory Epilepsy: The FDA approved cVNS as an adjunctive treatment for drug-resistant partial-onset epilepsy in 1997 based on randomized controlled trials (E03 and E05). Patients receiving high-frequency stimulation exhibited an average seizure frequency reduction of approximately 24% to 28% compared to 15% in low-frequency active sham controls. Long-term observational registries demonstrate that responder rates ($\ge 50\%$ seizure reduction) climb toward 50% to 60% over 12 to 24 months, indicating secondary neuroplastic network reorganization rather than immediate ictal termination.
-
Treatment-Resistant Depression (TRD): The 2005 FDA approval of cVNS for TRD remains one of the most controversial decisions in modern neuropsychiatric device regulation. The pivotal randomized trial (D-02) evaluated 235 treatment-resistant patients over 10 weeks of active vs. sham stimulation and failed to achieve statistical significance on its primary efficacy endpoint (Hamilton Depression Rating Scale, HRSD-24; $p = 0.24$). Despite the FDA advisory panel's severe reservations, approval was granted based on non-randomized, open-label 12-month observational extension data. As a direct consequence, the Centers for Medicare & Medicaid Services (CMS) maintained a national non-coverage determination for over 15 years, citing lack of demonstrable clinical benefit in sham-controlled settings.
-
The Cholinergic Anti-Inflammatory Pathway (CAP): Preclinical paradigms developed by Tracey et al. revealed that vagal efferent firing activates the celiac ganglion, conveying signals along the splenic nerve to release acetylcholine from specialized $CD4^+CD25^- T_{\text{ChAT}}$ lymphocytes. Acetylcholine binds to $\alpha 7$ nicotinic acetylcholine receptors ($\alpha 7\text{nAChR}$) on splenic red-pulp macrophages, inhibiting NF-$\kappa$B nuclear translocation and suppressing systemic TNF-$\alpha$, IL-1$\beta$, and IL-6 synthesis. While cVNS has achieved dramatic anti-inflammatory remission in Crohn's disease and rheumatoid arthritis trials, translation into consumer wellness remains compromised by a failure to reach the high electrical charge thresholds required to trigger autonomic splenic efferent firing.
6. Interactive Visualizer User Guide

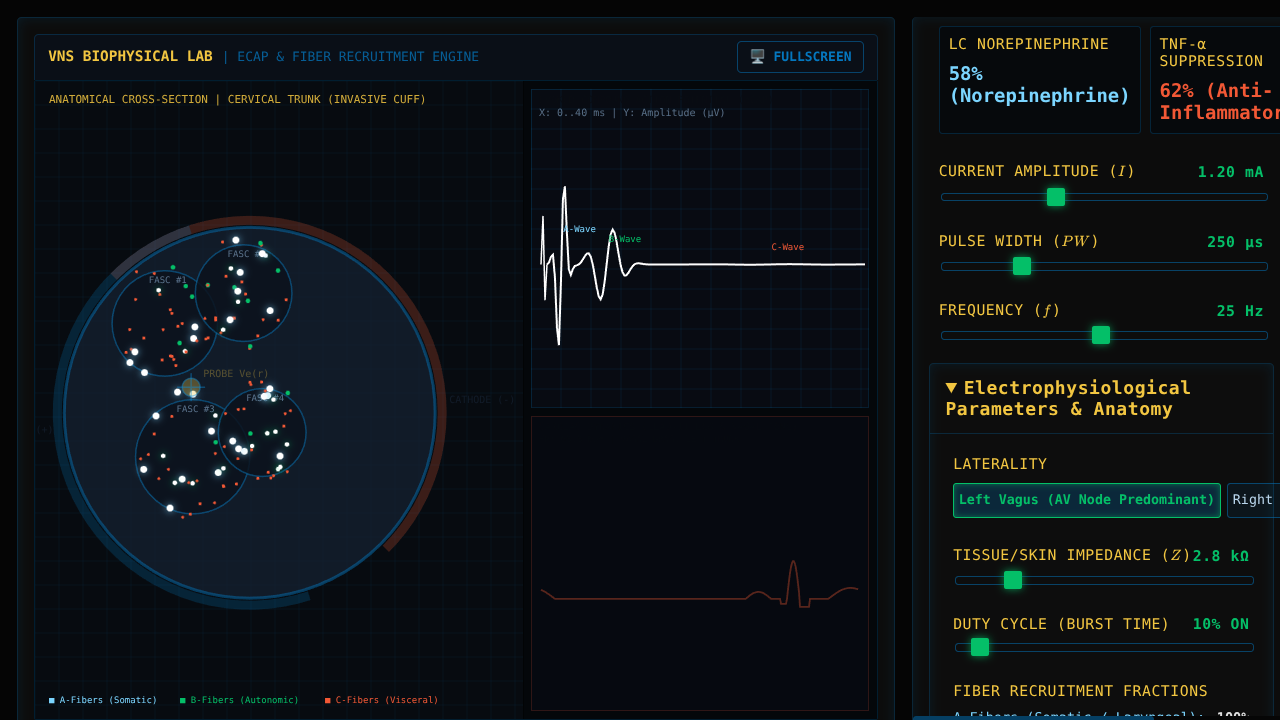

The interactive workspace above provides real-time modeling of nerve trunk electrodynamics and visceral physiology:
-
Nerve Cross-Section & Fascicle Interaction: The left panel illustrates a histological cross-section of the vagus nerve trunk with epineurium, perineurium, and axon distributions. Click or drag directly on the nerve canvas to relocate the electrode interface and probe local extracellular potential distributions $V_e(r)$.
-
Modality Grid: Toggle between invasive cuff cVNS and transcutaneous auricular taVNS to observe immediate shifts in tissue impedance, effective current delivery, and fiber recruitment patterns.
-
Primary Parameter Sliders: Adjust current amplitude ($0.0 \text{ to } 3.5\,\text{mA}$), pulse width ($25 \text{ to } 1000\,\mu\text{s}$), and pulse frequency ($1 \text{ to } 50\,\text{Hz}$). The dynamic Evoked Compound Action Potential (eCAP) oscilloscope updates in real-time to render $A$-wave, $B$-wave, and $C$-wave components.
-
Laterality Switch: Switch between the Left Vagus (clinical standard for epilepsy/depression, primarily mediating atrioventricular [AV] nodal modulation) and the Right Vagus (predominant sinoatrial [SA] node innervation, demonstrating severe bradycardia and sinus arrest risks).
